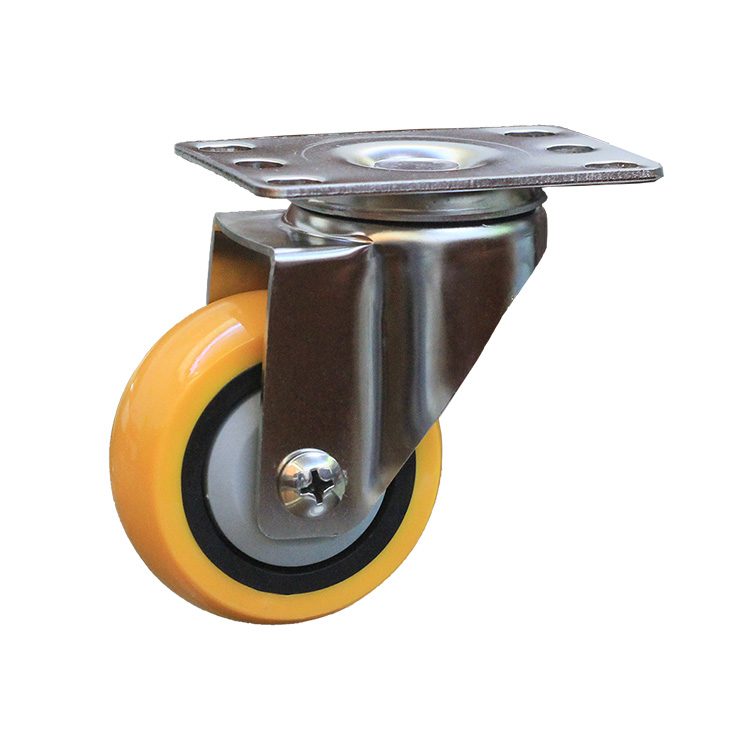

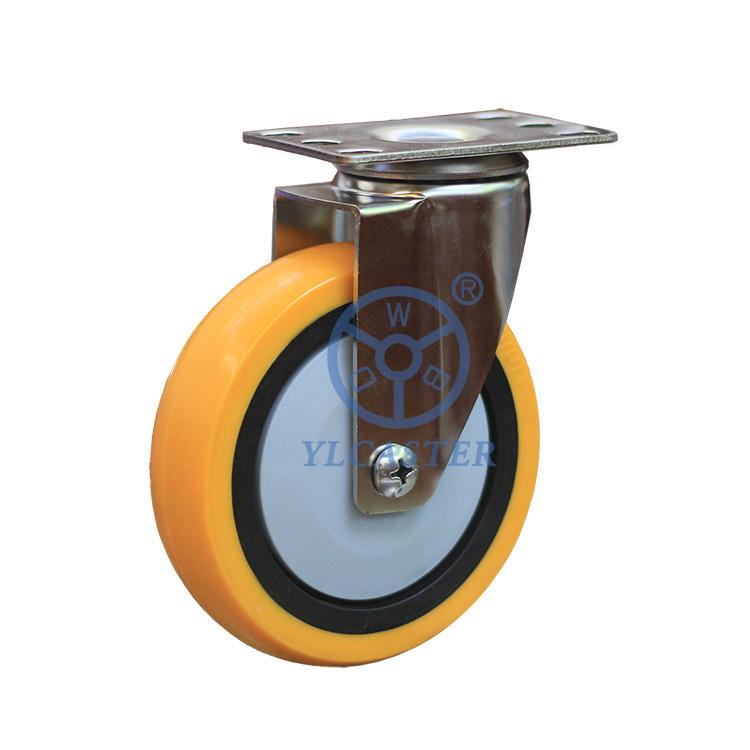

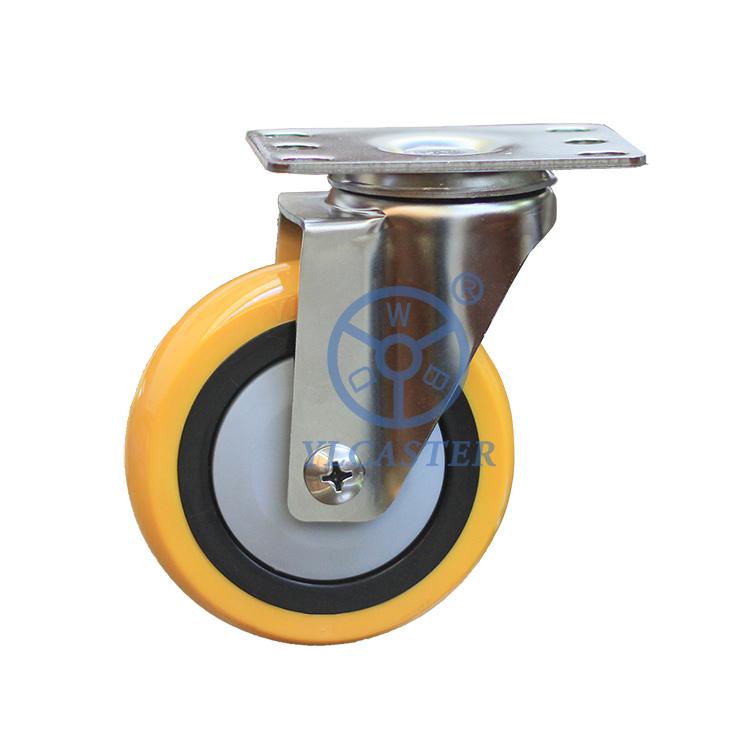

Medium duty 3" stainless steel orange pu swivel caster waterproof
Housing:
Made of pressed stainless steel 304
Wheel:
Material: PU +PP Core
Hardness: 90±5 Shore A
Bearing type: Double Ball bearing
Temperature: -20℃~80℃
(mm)
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole Distance |
Hole Dia |
Wheel Material |
Weight Capacity |
W011ME075PU | 75X32mm | 113mm | Swivel | 95X70mm | 73.5X48.5mm | 12.5X9mm | PU | 80KG |
W011ME100PU | 100X32mm | 137mm | Swivel |
95X70mm |
73.5X48.5 | 12.5X9mm | PU | 110KG |
W011ME125PU | 125X32mm | 164mm | Swivel | 95X70mm | 73.5X48.5mm |
12.5X9mm |
PU | 130 KG |
Product Description:
Medium duty stainless steel bracket swivel plate orange PU or PVC casters, as literally means, the stamped and formed bracket is made of stainless steel. The wheel tread is made of orange PU or PVC material wrapped with black PP material wheel core, matched with double ball bearings, and it rotates smoothly. They can be made of different color, and logo are also customizable.
They are made of single ball bearing PU wheels with double bearing cover, which can ensure longer usage.
Stainless steel casters do better in using. If you need, you can also upgrade the ss level to have a better performance.
Suitable for all kinds of furniture, shelves, trolleys, machines, etc.

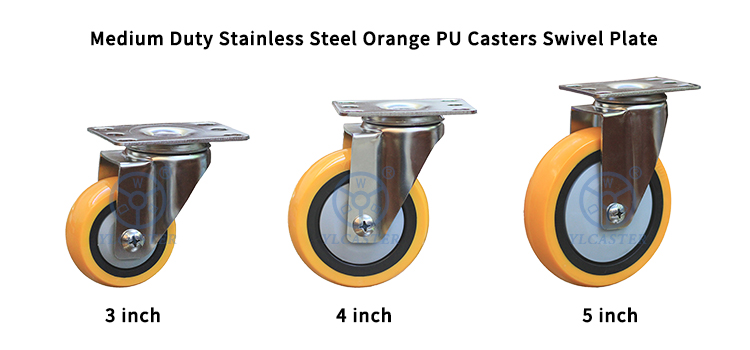

Caster View
Specifications Of Orange PU SS Rotating Casters:
Wheel diameter: 75 mm |
Wheel width: 32 mm |
Total height: 105 mm |
Load capacity: 90 kg per wheel |
Wheel tread: PU or PVC |
Mounting plate size: 93 mm x 62 mm |
Fixing holes distances:72 mm x 45 mm |
Bearing type: Ball bearing |
Color: Orange |
Features: Orange Wheel, PU Wheel, Stainless Steel Wheel, Trolley Caster Wheel, Medium Duty Wheel |
With brake: No |
(mm)
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole Distance |
Hole Dia |
Wheel Material |
Weight Capacity |
W011ME075PU | 75X32 | 101 | Fixed | 93X62 | 72X45 | 12X8.5 | PU | 90KG |
W011ME100PU | 100X32 | 130 | Fixed |
95X70 |
73.5X48.5 | 12.5X9 | PU | 110KG |
W011ME125PU | 125X32 | 155 | Fixed | 95X70 | 73.5X48.5 |
12.5X9 |
PU | 135KG |

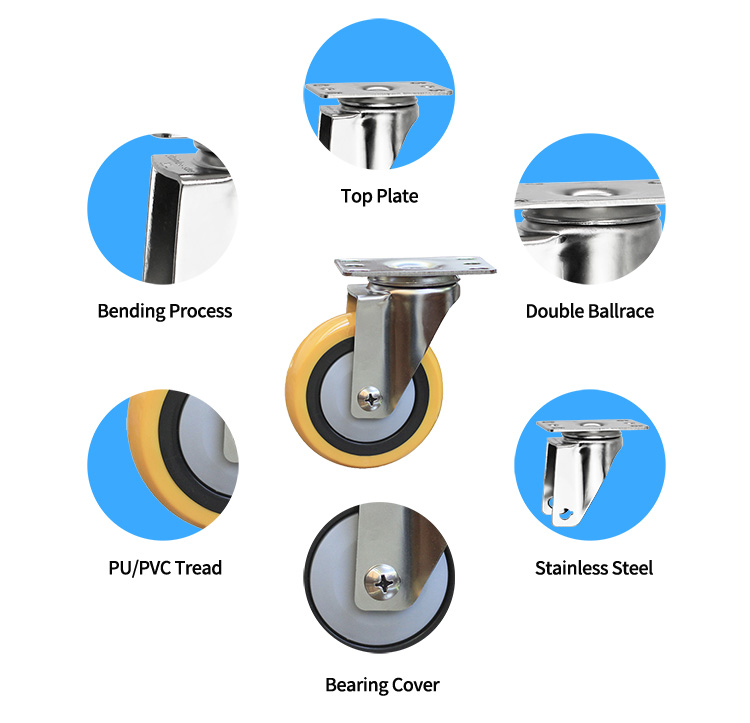

Details Of Swivel Plate Stainless Steel Casters:
Application Of Swivel Orange PU Caster Wheels:
Foldable trolleys, machines, hospital etc
Bulk Casters And Packaging
About Us:
Why Choose Us:
One of the top 10 caster brands in China
1.Manufacturing pricing
2.Broad product lines, over 2000+ combinations
3.Fastest delivery time, more than $15 Million in finished component parts
4.We deliver what we promise, quality without compromises
5.Best customer supports and services
6.Honesty and integrity
Feature :
- 3" PU swivel caster wheels are very quiet and slip resistant.
-
Stainless steel fork , waterproof, rust-resistant.
- 90 kg capacity ideal for light and medium duty material handling trolleys and other applications .
