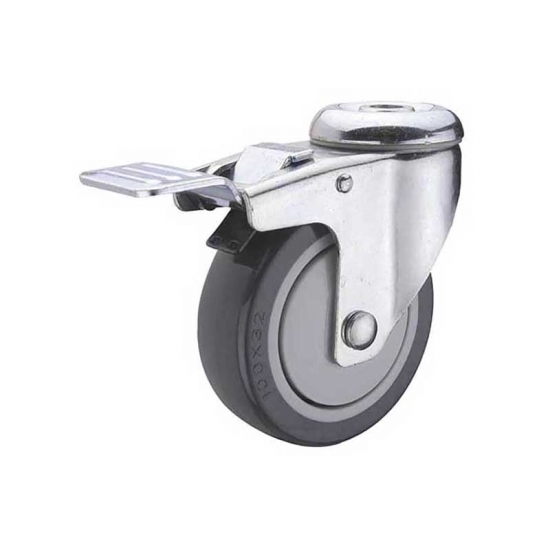

75 mm polyurethane bolt hold double brake stainless steel caster
Housing:
Made of pressed stainless steel
double ballrace swivel head
transparent dust-proof seal
Wheel:
Material:Polyurethane
Hardness:90±5 Shore A
Bearing type:Precision ball bearing
Temperature:-20℃~80℃
(mm)
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole Distance |
Hole Dia |
Wheel Material |
Weight Capacity |
W28075SSPUDB2/3 | 75X32 | 104 | Bolt hold | 95X67X3 | 73X45 | 11X8.5 | PU | 100KG |
W28100SSPUDB2/3 | 100X32 | 132 | Bolt hold |
95X67X3 |
73X45 | 11X8.5 | PU | 120KG |
W28125SSPUDB2/3 | 125X32 | 158 | Bolt hold | 95X67X3 | 73X45 |
11X8.5 |
PU | 150 KG |
Feature :
-
Wheels roll smoothly with integrated ball bearing design.

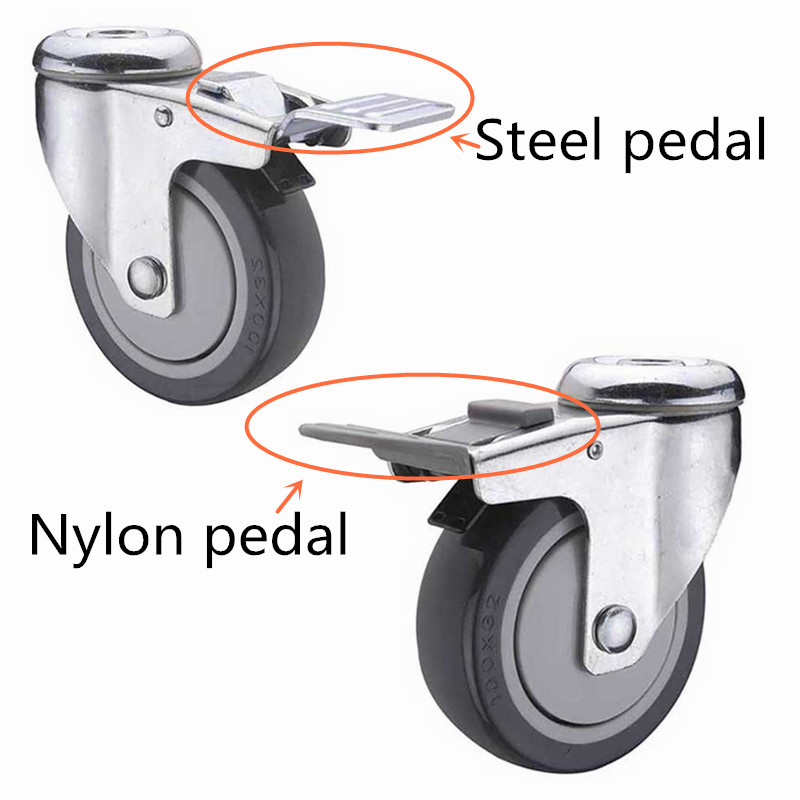

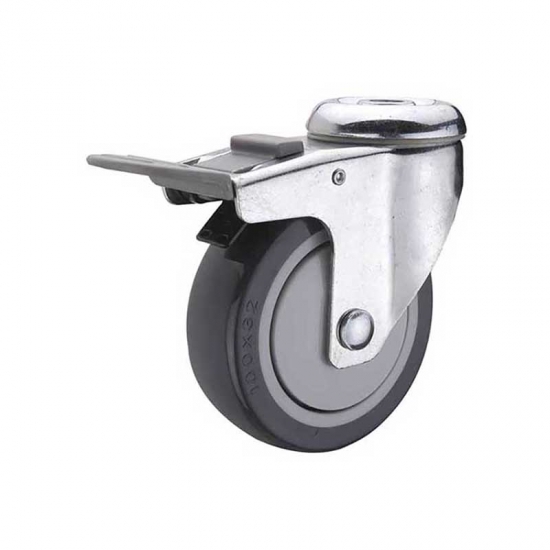

- Steel pedal and Nylon pedal for choose
- Total Lock brake solidly locks both the swivel and wheel, double locking is safety and convenient.
Blot hole PU caster wheels ,apply to for light and medium duty material handling, carts, equipment, and shop projects.
