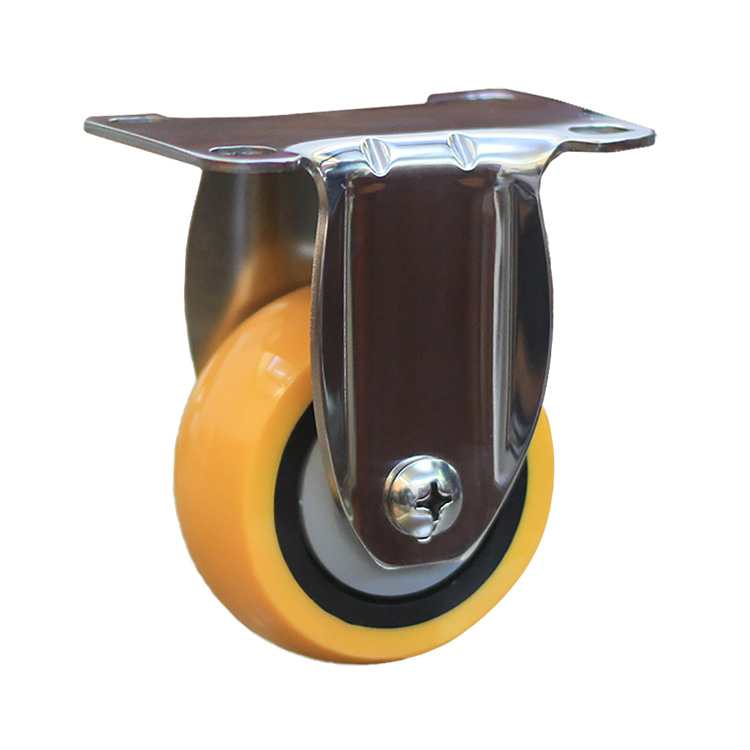

Medium duty 3" stainless steel orange pu fixed caster waterproof
Housing:
Pressed stainless steel
Wheel:
Material:PU
Hardness:90±5 Shore A
Bearing type:Ball bearing
Temperature:-20℃~80℃
Product Description:
Here is a medium duty stainless steel bracket rigid plate orange PU or PVC casters, as literally means, the stamped and formed bracket is made of stainless steel. The wheel tread is made of orange PU or PVC material wrapped with black PP material wheel core, matched with double ball bearings, and it rotates smoothly. They can be made of different color, and logo are also customizable.
Stainless steel casters do better in using. If you need, you can also upgrade the ss level to have a better performance.
Suitable for all kinds of furniture, shelves, trolleys, machines, etc.

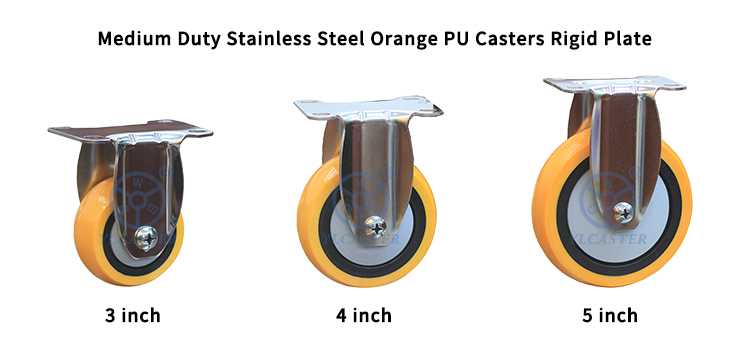

Caster View
Specifications Of Orange PU SS Casters:
Wheel diameter: 75 mm |
Wheel width: 32 mm |
Total height: 105 mm |
Load capacity: 90 kg per wheel |
Wheel tread: PU or PVC |
Mounting plate size: 93 mm x 62 mm |
Fixing holes distances:72 mm x 45 mm |
Bearing type: Ball bearing |
Color: Orange |
Features: Orange Wheel, PU Wheel, Yellow Wheel, Trolley Caster Wheel, Medium Duty Wheel |
With brake: No |
(mm)
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole Distance |
Hole Dia |
Wheel Material |
Weight Capacity |
W011ME075PUF | 75X32 | 101 | Fixed | 93X62 | 72X45 | 12X8.5 | PU | 90KG |
W011ME100PUF | 100X32 | 130 | Fixed |
95X70 |
73.5X48.5 | 12.5X9 | PU | 110KG |
W011ME125PUF | 125X32 | 155 | Fixed | 95X70 | 73.5X48.5 |
12.5X9 |
PU | 135KG |

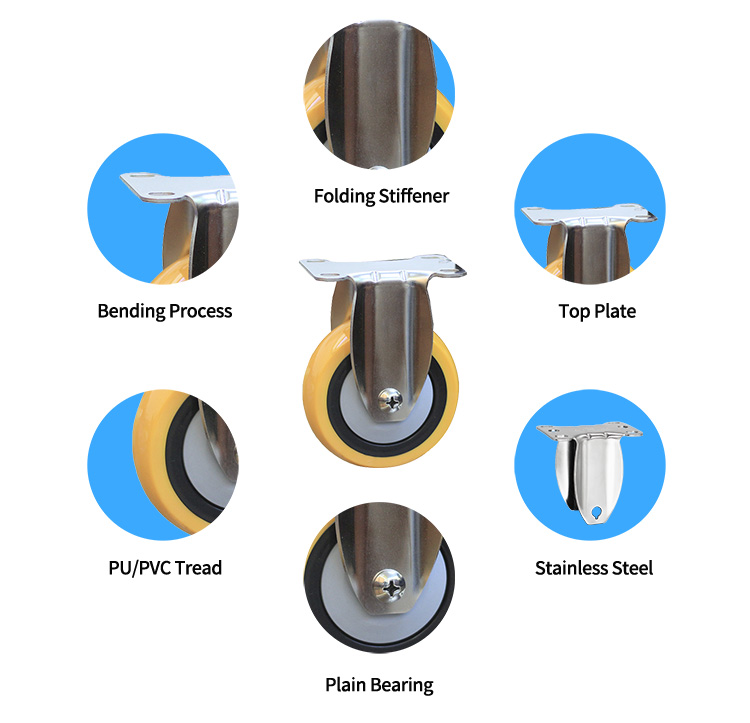

Details Of Rigid Plate Stainless Steel Casters:
Application Of Rigid Orange PU Caster Wheels:
Foldable trolleys, machines, hospital etc
Bulk Casters And Packaging
About Us:
Why Choose Us:
One of the top 10 caster brands in China
1.Manufacturing pricing
2.Broad product lines, over 2000+ combinations
3.Fastest delivery time, more than $15 Million in finished component parts
4.We deliver what we promise, quality without compromises
5.Best customer supports and services
6.Honesty and integrity
Feature :
- 3" PU fixed caster wheels are very quiet and slip resistant.
-
Stainless steel fork , waterproof, rust-resistant.
- 90 kg capacity ideal for light and medium duty material handling trolleys and other applications .
