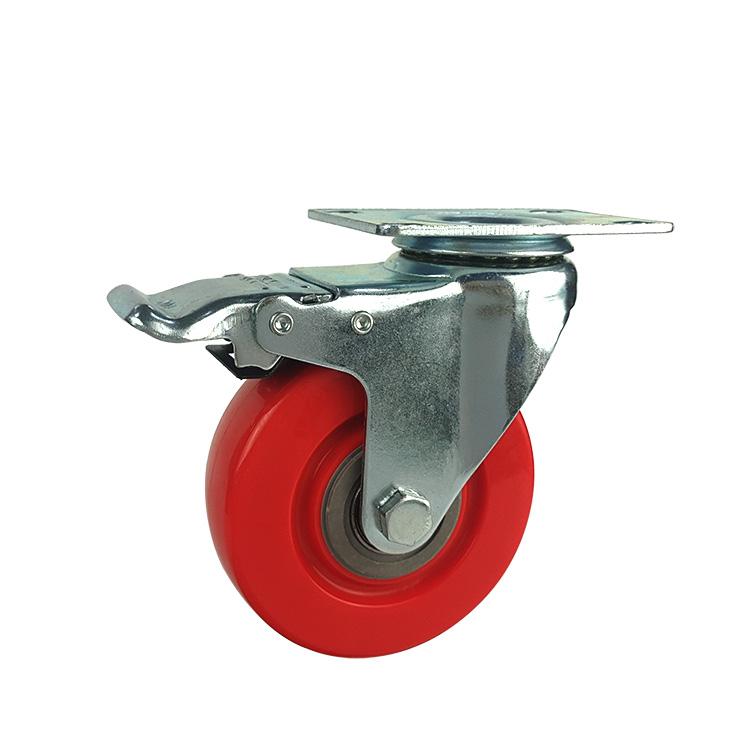

Red PVC swivel caster wheel medium duty with double brakes
Housing:
Solid steel welded construction,
zinc plated double ballrace swivel head,
dustproof seal heat treated ballrace,
hardened steel balls
Wheel:
Materials:PP Core + PVC
Bearing type:ball bearing
Product Description:
Medium duty zinc plated bracket movable red PVC casters, as literally means, the stamped and formed steel bracket is painted by zinc. The wheel tread is made of red PVC material wrapped with grey PP material wheel core, matched with double ball bearings, and it rotates smoothly. They can be made of different color, and logo are also customizable. Due to the cost, you can choose to equipt with bearing covers or not. Suitable for all kinds of furniture, shelves, trolleys, machines, etc.

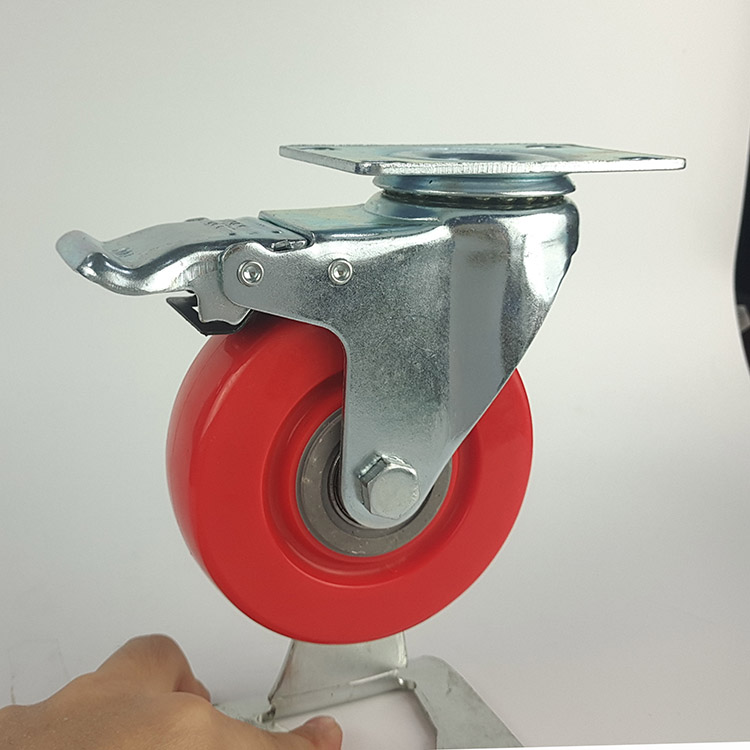

Real Shot

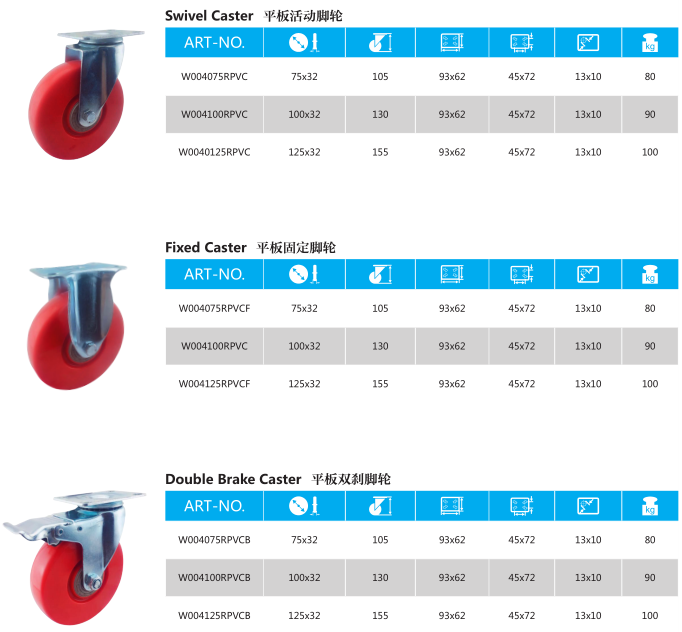

Specifications Of Red Casters With Brakes:
Wheel diameter: 100 mm |
Wheel width: 32 mm |
Total height: 130 mm |
Load capacity: 90 kg per wheel |
Wheel tread: PVC or PU |
Mounting plate size: 93 mm x 62 mm |
Fixing holes distances:72 mm x 45 mm |
Bearing type: Ball bearing |
Color: Red |
Features: Red Wheel, PVC Wheel, Trolley Wheel, Trolley Caster Wheel, Medium Duty Wheel |
With brake: Yes |

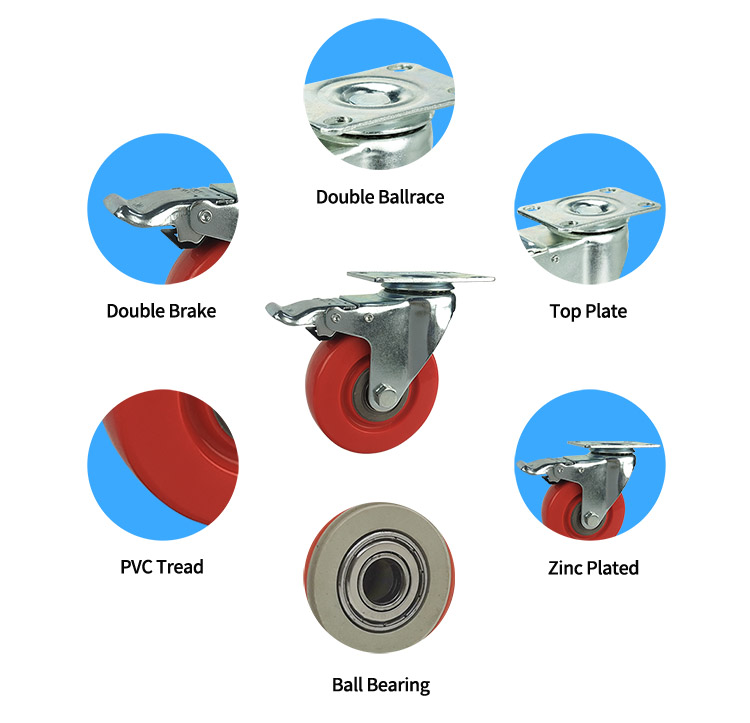

Details Of Swivel Plate PVC Locking Casters:
Application Of Swivel Lock PVC Caster Wheels:
Foldable trolleys, machines etc
Bulk PVC Casters And Packaging

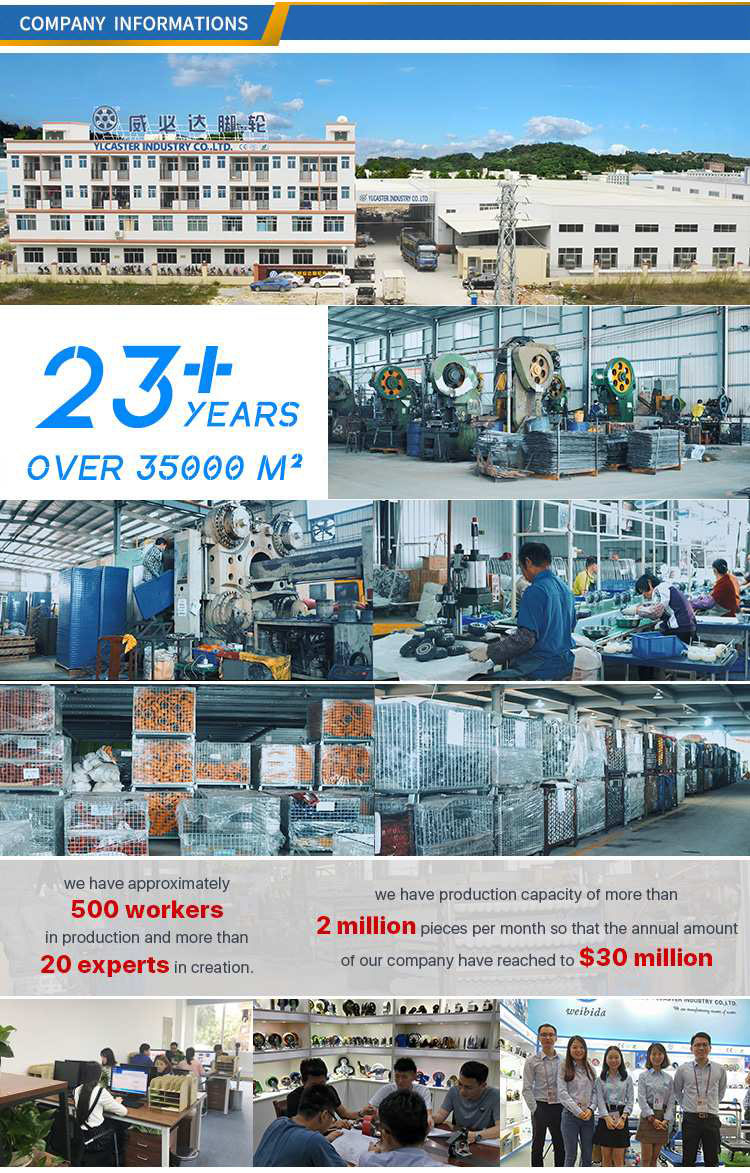

Our Company:
Why Choose Us:
One of the top 10 caster brands in China
1.Manufacturing pricing
2.Broad product lines, over 2000+ combinations
3.Fastest delivery time, more than $15 Million in finished component parts
4.We deliver what we promise, quality without compromises
5.Best customer supports and services
6.Honesty and integrity
Feature :
- PP Core + PVC coating caster wheels, easy moving and rusted prevent.
- Wildly use in industrial trolley.
