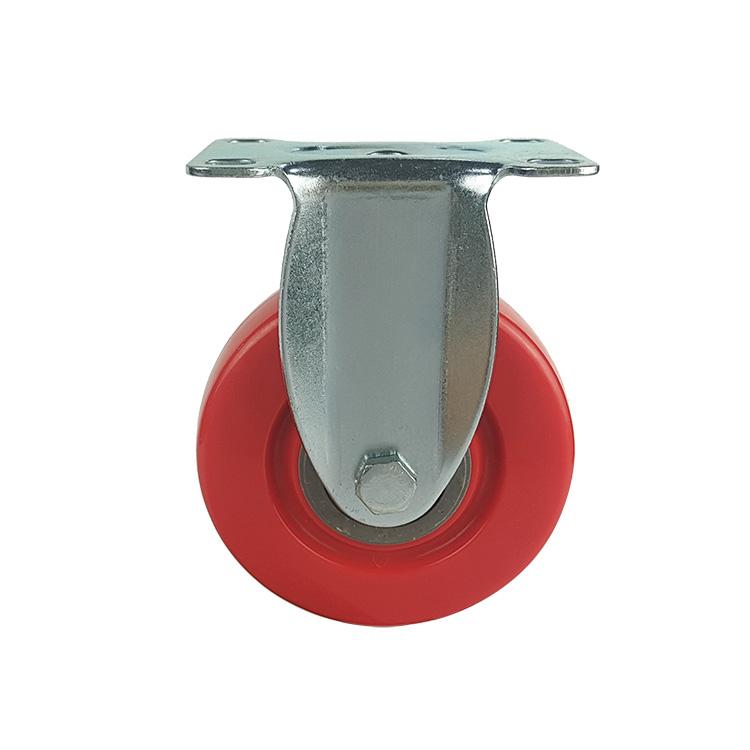

Red PVC rigid caster wheel medium duty
Housing:
Solid steel welded construction,
zinc plated double ballrace swivel head,
dustproof seal heat treated ballrace,
hardened steel balls
Wheel:
Materials:PP Core + PVC
Bearing type:ball bearing
Product Description:
The medium duty red casters are made of PVC Wheel (PP Core), the wheel features good performance of wear-resistance, durable quality when loading around 80-100 kg per wheel.
It is one of the hottest selling item in Pakistan market due to economic cost and good looking. the wheels are also available with two metal side cover on bearing to aviod dust wehn running.

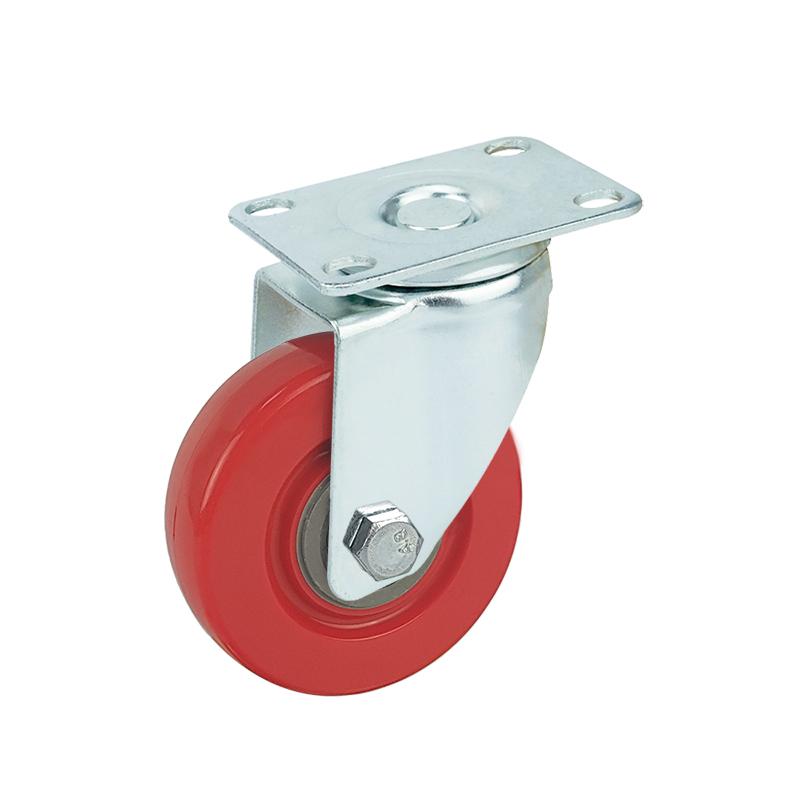

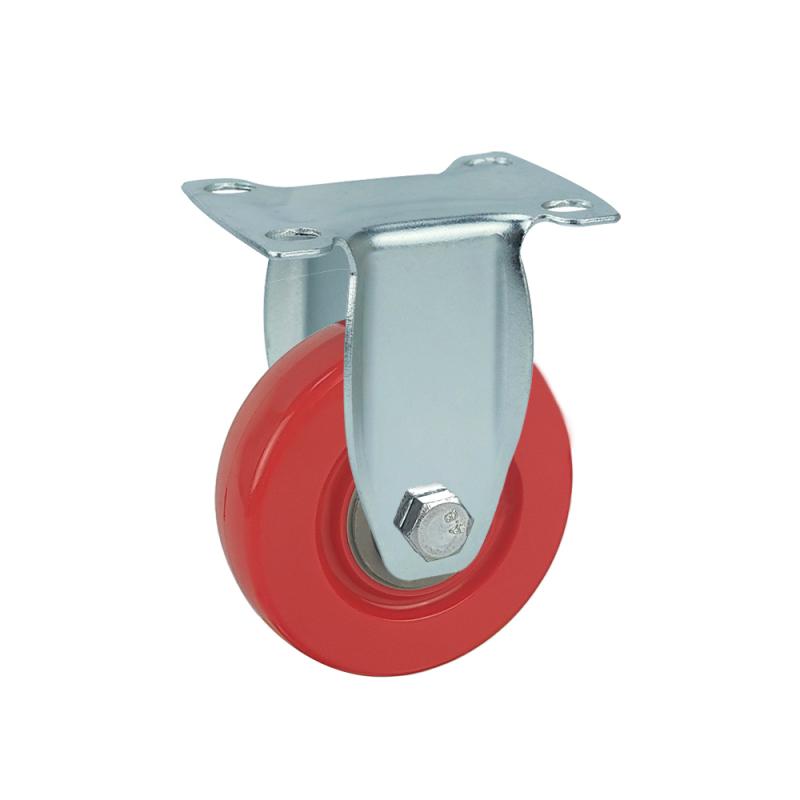

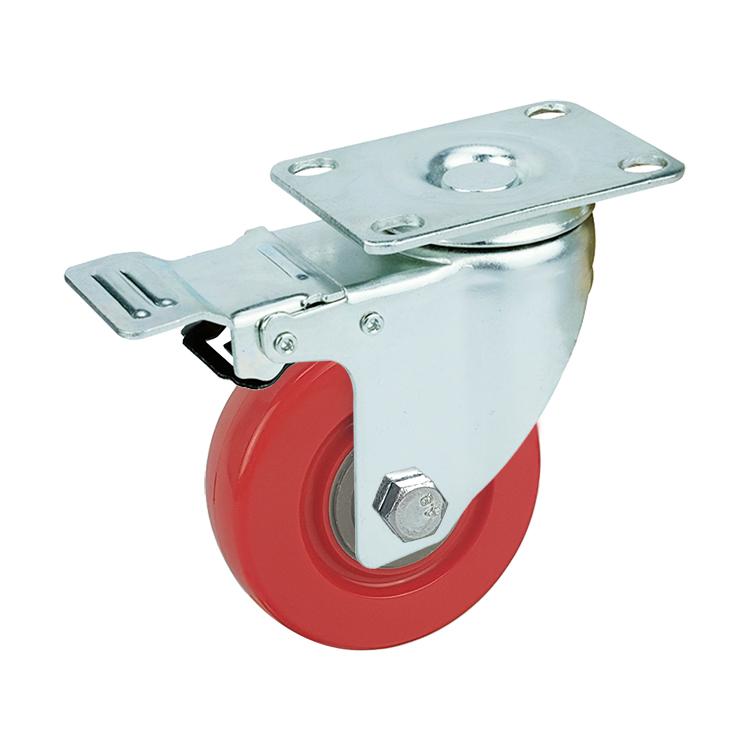

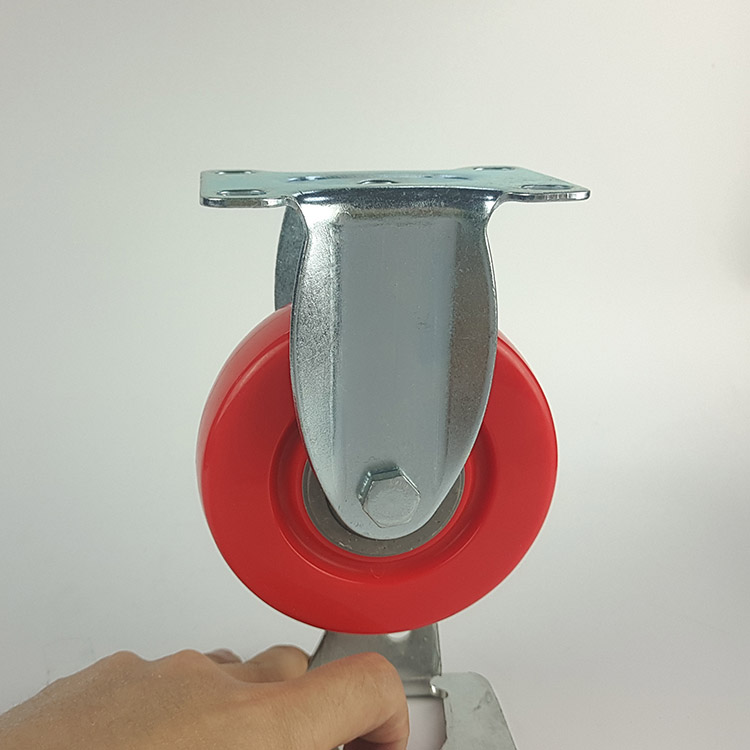

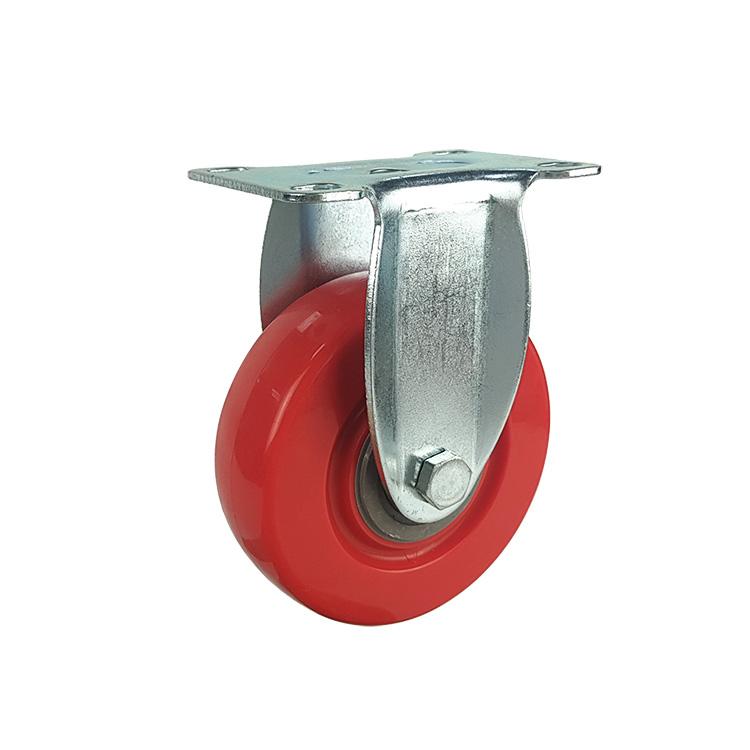

Caster Show
Specifications Of Red PVC Rigid Casters:
Wheel diameter: 125mm |
Wheel width: 32 mm |
Total height: 155 mm |
Load capacity: 100 kg per wheel |
Wheel tread: PVC |
Mounting plate size: 93 mm x 62 mm |
Fixing holes distances:72 mm x 45 mm |
Bearing type: Ball bearing |
Color: Red |
Features: Red Wheel, Red Caster Wheel, Trolley Wheel, Industrial Trolley Caster Wheel, Medium Duty Wheel |
With brake: No |

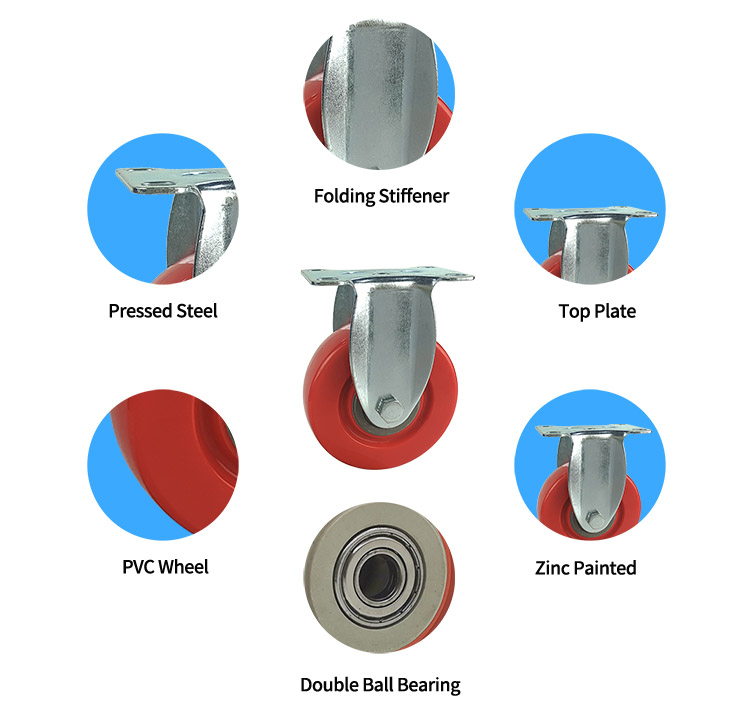

Details Of Rigid PVC Casters:

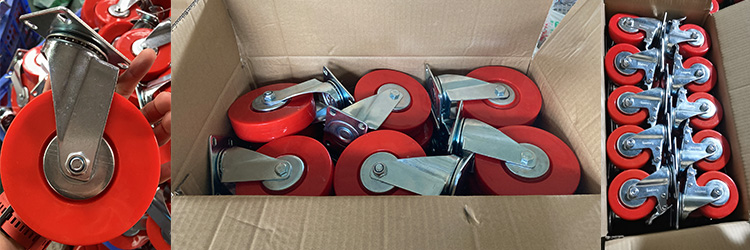

Package Of PVC Caster Red:
PVC Wheels Application:
Wildly Use In The Industrial Trolley, Heavy Duty Equipment,Lightweight Mobile Platform.
The best choice when you are looking for a cost effective caster.
Quality Control:
1. Work station self-inspection-employees check the semi-finished products produced at their own locations
2. Sampling inspection during production-the quality control department conducts sampling inspection on semi-finished products in production
3. Finished product inspection-the quality control department conducts random inspections on the finished product
4. Product testing-testing and inspection of finished products
Feature:
- PP Core + PVC coating caster wheels, easy moving and rusted prevent.
- Wildly use in industrial trolley.
