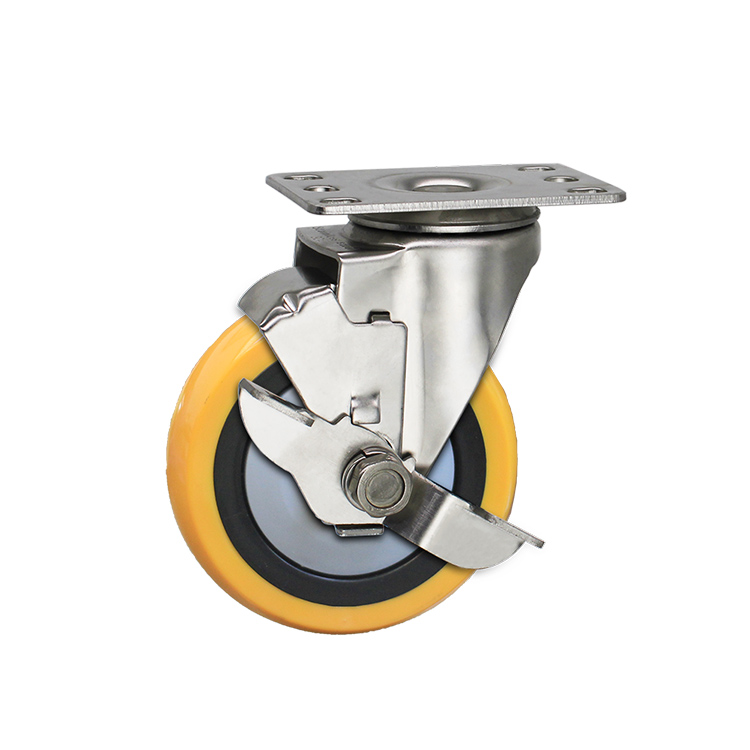

4" stainless steel orange pu side locking caster wheels supplys
Housing:
stainless steel
Wheel:
Material: PU +PP Core
Hardness: 90±5 Shore A
Bearing type: Double Ball bearing
Temperature: -20℃~80℃
Product Description:
Side lock medium duty stainless steel bracket swivel plate orange PU or PVC casters, as literally means, the stamped and formed bracket is made of stainless steel. The wheel tread is made of orange PU or PVC material wrapped with black PP material wheel core, matched with double ball bearings, and it rotates smoothly. They can be made of different color, and logo are also customizable.
They are made of single ball bearing PU wheels with double bearing cover, which can ensure longer usage.
Suitable for all kinds of furniture, shelves, trolleys, machines, etc.

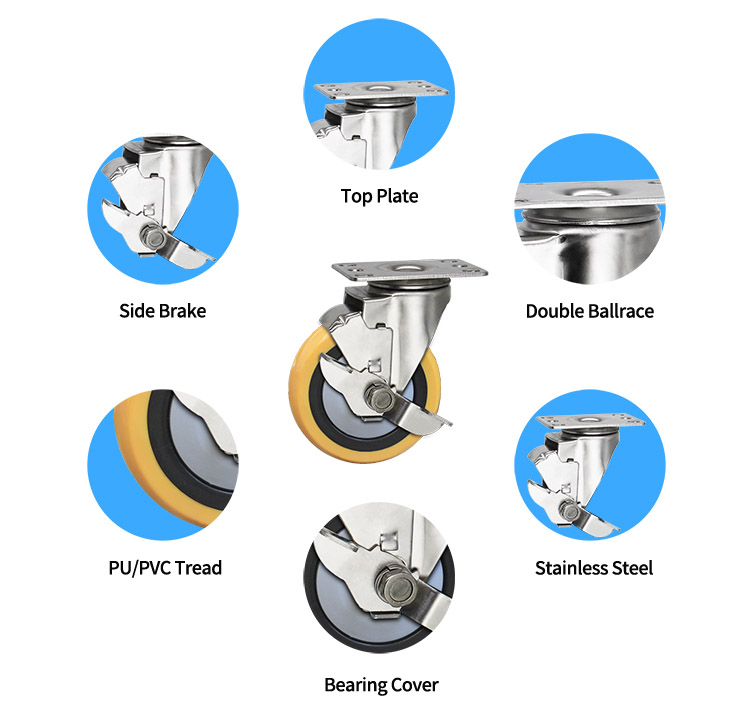

Caster View
Specifications Of Orange PU SS Side Locking Casters:
Wheel diameter: 100 mm |
Wheel width: 32 mm |
Total height: 130 mm |
Load capacity: 110 kg per wheel |
Wheel tread: PU or PVC |
Mounting plate size: 93 mm x 62 mm |
Fixing holes distances:72 mm x 45 mm |
Bearing type: Ball bearing |
Color: Orange |
Features: Orange Wheel, PU Wheel, Stainless Steel Wheel, Trolley Caster Wheel, Stainless Steel PU Wheel |
With brake: Side brake |
(mm)
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole Distance |
Hole Dia |
Wheel Material |
Weight Capacity |
W011ME075PUB1 | 75X32 | 101 | Swivel | 93X62 | 72X45 | 12X8.5 | PU | 90KG |
W011ME100PUB1 | 100X32 | 130 | Swivel |
95X70 |
73.5X48.5 | 12.5X9 | PU | 110KG |
W011ME125PUB1 | 125X32 | 155 | Swivel | 95X70 | 73.5X48.5 |
12.5X9 |
PU | 135KG |
Details Of Side Locking Stainless Steel Casters:
Application Of Single Brake PU Caster Wheels:
Foldable trolleys, machines, hospital etc
Bulk Casters And Packaging
About Us:
Why Choose Us:
One of the top 10 caster brands in China
1.Manufacturing pricing
2.Broad product lines, over 2000+ combinations
3.Fastest delivery time, more than $15 Million in finished component parts
4.We deliver what we promise, quality without compromises
5.Best customer supports and services
6.Honesty and integrity
Feature :
- 4 inch PU single locking caster wheels are very quiet and slip resistant.
-
Stainless steel fork , waterproof, rust-resistant.
- 242lbs capacity ideal for light and medium duty material handling trolleys and other applications .
