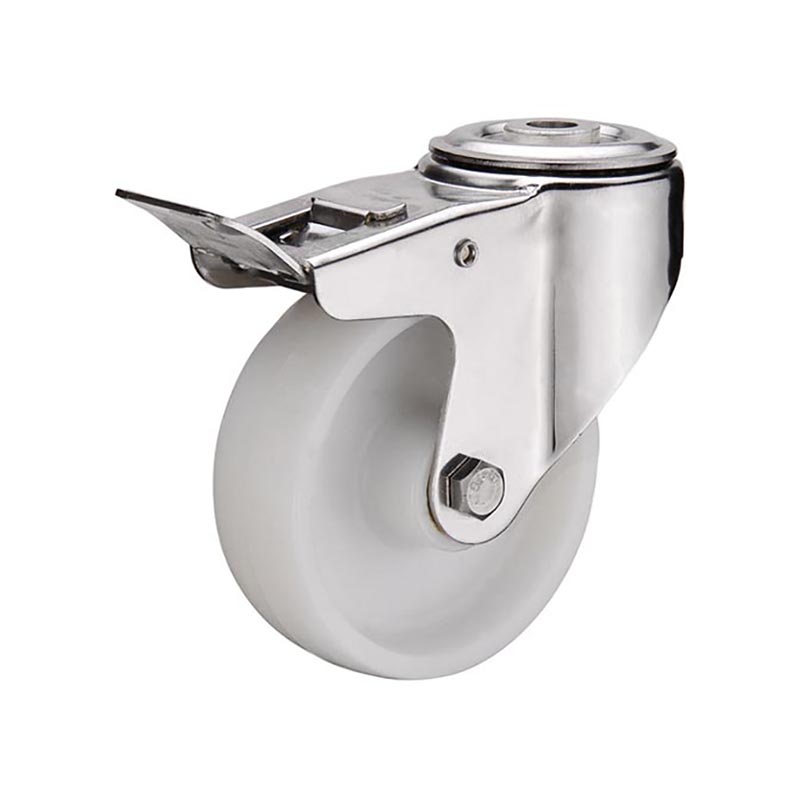

White nylon bolt hole brake stainless steel casters
Housing:
Made of pressed stainless steel
Double ballrace swivel head
Wheel:
Material: Nylon
Bearing Type: Plain bearing
Temperature range: -15℃~80℃
(mm)
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole
|
Wheel Material |
Weight Capacity |
W11075SSNYDB |
75X23 | 97 | Bolt hole | 84X72 | 10.5 | Nylon | 60KG |
W11080SSNYDB | 80X30 | 108 | Bolt hole | 102X84 | 12.5 |
Nylon |
100KG |
W11100SSNYDB | 100X32 | 130 | Bolt hole |
102X84 |
12.5 |
Nylon |
120KG |
W11125SSNYDB | 125X32 | 155 | Bolt hole | 102X84 | 12.5 | Nylon | 150KG |
Feature :
- Total Lock System; locks swivel and wheel
- High quality White nylon material,wear resisting & handy .
-
Wheels roll smoothly with integrated ball bearing design.
Nylon Swivel Caster Wheels,This versatile caster is ideal for light and medium duty material handling, carts, equipment, and shop projects. Total Lock brake solidly locks both the swivel and wheel, providing an exceptionally sturdy base when engaged.
