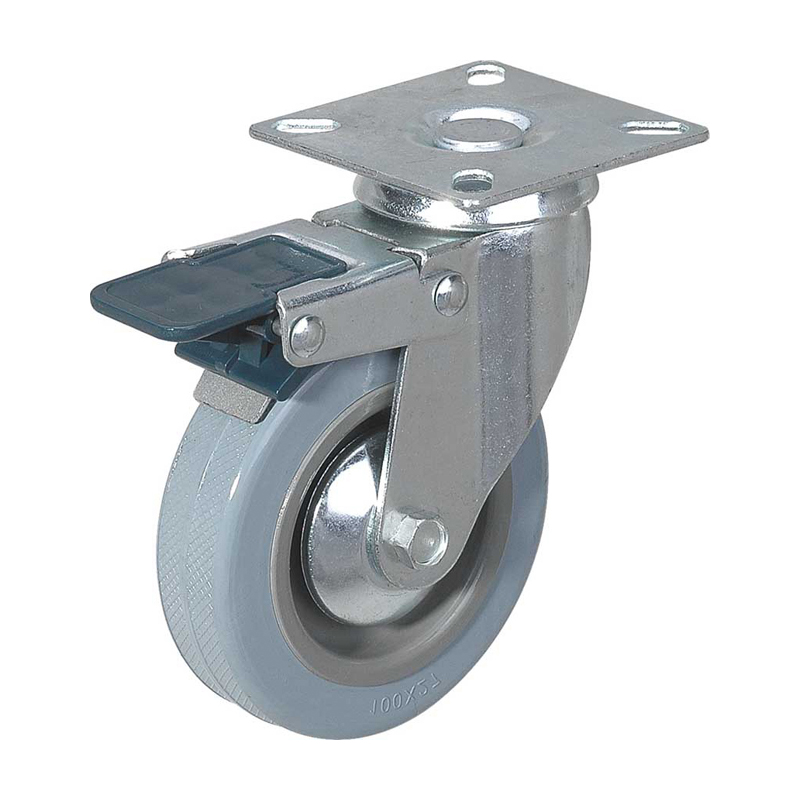

Nylon brake small rubber wheels with bearings
Housing:
Made of pressed steel, zinc plated,
double ballrace swivel head
Wheel:
Materials: Gray rubber
Bearing type: Plain bearing
Hardness:85±3 Shore A
Temperature range::-10℃~50℃
PVC Type is available
(mm)
Wheel
Diameter
Overall
Height
Caster
Type
Top
plate
Hole
Distance
Hole
Dia
Wheel
Material
Weight
Capacity
Item No.
W33050F2
50x16
72
Rigid
50x50
36x36
12x6.2
Gray rubber
20 KG
W33065F2
65x19
94
Rigid
65x65
49x49
12x6.2
Gray rubber
20KG
W33075F2
75x21
104
Rigid
65x65
49x49
12x6.2
Gray rubber
30 KG
W33100F2
100x26
134
Rigid
75x75
55x55
15*8.5
Gray rubber
45 KG
W33120F2
120x27
158
Rigid
75x75
55x55
15*8.5
Gray rubber
50KG
W33125F2
125x27
161
Rigid
75x75
55x55
15*8.5
Gray rubber
50KG
Feature of small rubber wheels with bearings:
- Seperated weld connection small rubber caster wheel,
- Light duty style , widely use in small equipment,
- Indoors using, silence.
