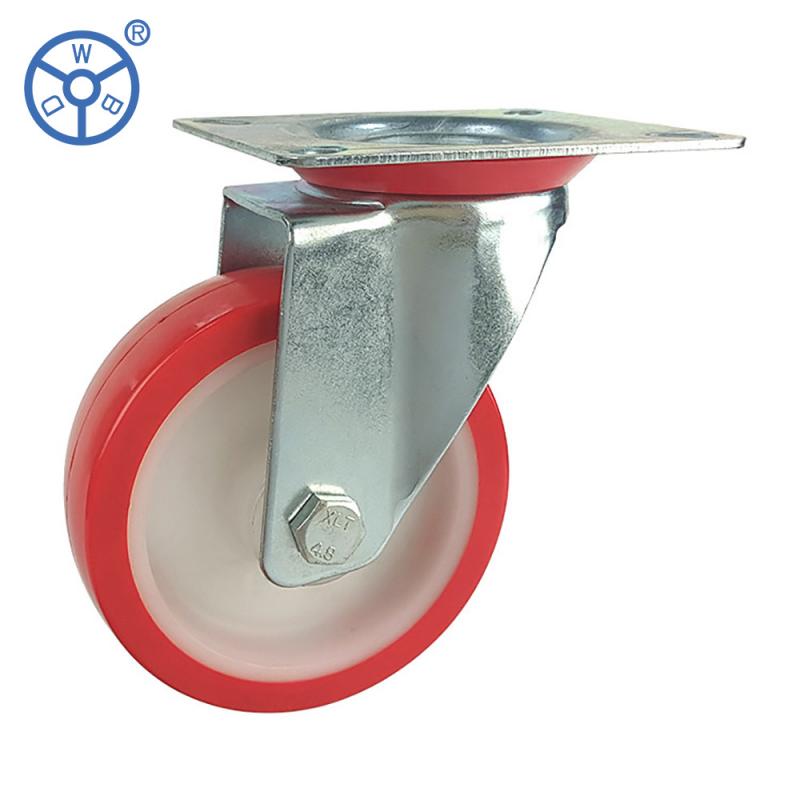

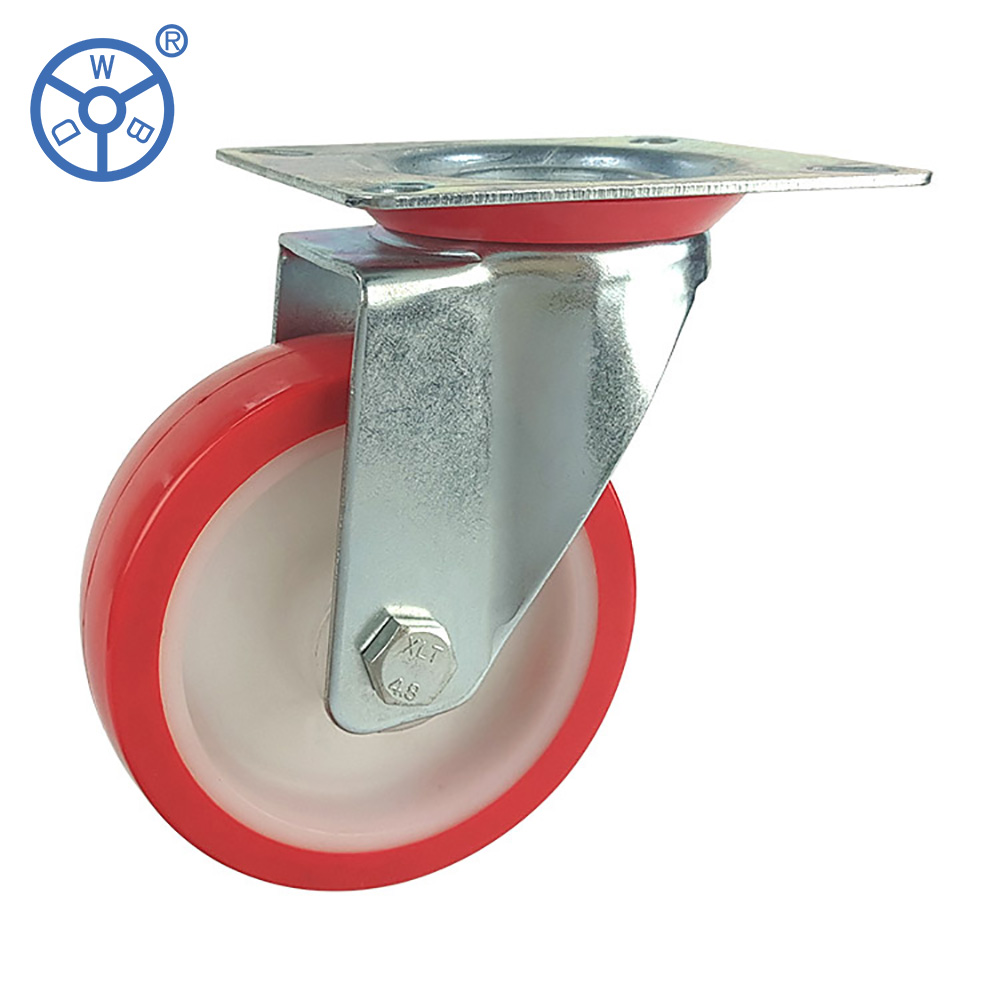

European type standard industrial swivel plate casters
Housing:
Made of pressed steel, zinc plated,
double ballrace swivel head, dustproof seal.
Wheel:
Material: PU (Plastic material is available)
Bearing type: plain bearing
Temperature range: -15℃~80℃
Item No. | Wheel Dia*Width |
Overall
Height
|
Top
Plate
|
Hole Distance | Wheel Material | Bearing Type | Load Cap. | Mounting |
mm | mm | mm | mm | kg | ||||
I006A085PUP | 85x22 | 105 | 100x80 | 80x60 | PU | Plain Bearing | 50 | Swivel |
I006A100PUP | 100x27 | 130 | 100x80 | 80x60 | PU | Plain Bearing | 70 | Swivel |
I006A125PUP | 125x34 | 155 | 100x80 | 80x60 | PU | Plain Bearing | 90 | Swivel |
I006A085PUPF | 85x22 | 105 | 99x85 | 80x60 | PU | Plain Bearing | 50 | Fixed |
I006A100PUPF | 100x27 | 130 | 99x85 | 80x60 | PU | Plain Bearing | 70 | Fixed |
I006A125PUPF | 125x34 | 155 | 99x85 | 80x60 | PU | Plain Bearing | 90 | Fixed |
I006A085PUPB | 85x22 | 105 | 100x80 | 80x60 | PU | Plain Bearing | 50 | Double Brake |
I006A100PUPB | 100x27 | 130 | 100x80 | 80x60 | PU | Plain Bearing | 70 | Double Brake |
I006A125PUPB | 125x34 | 155 | 100x80 | 80x60 | PU | Plain Bearing | 90 | Double Brake |
