Hot sale 100mm red wheel pu swivel top plate heavy duty castor wheels manufacturer
Description:

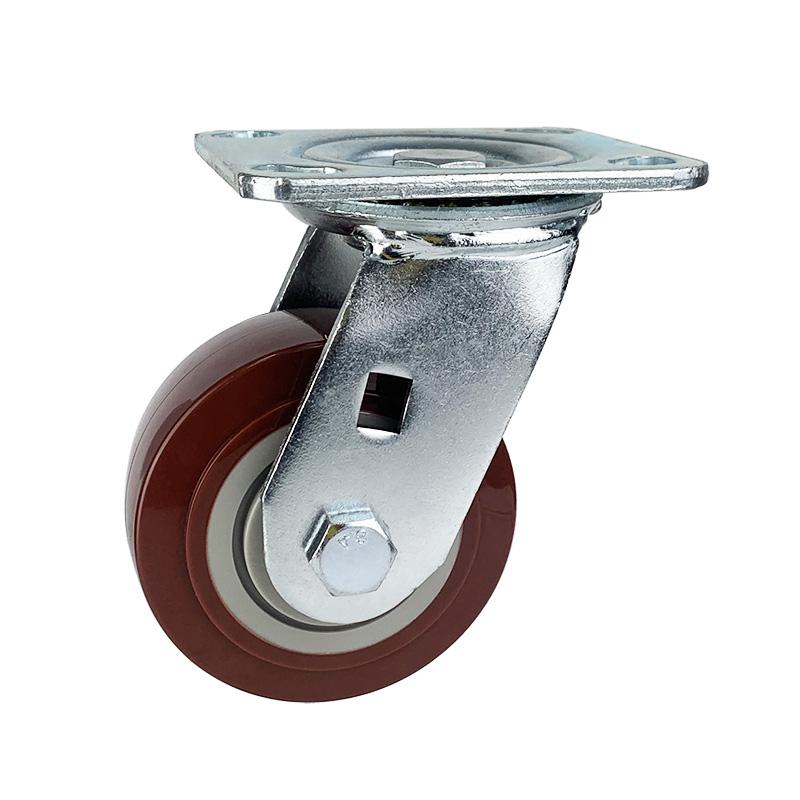

This heavy duty castor wheel has a 100mm wheel, 50mm width. The wheels are made of polyurethane with pp core. And pu material is no-marking, durable and low noise. This type of swivel heavy duty castor wheel has a flat tread, which has a larger contact area with the ground when in use, is not easy to deform when the load is loaded, and can also protect the floor well.
Wheel
Diameter
Overall
Height
Caster
Type
Top
plate
Hole
Distance
Hole
Dia
Wheel
Material
Weight
Capacity
Item No.
I004A100PUP
100x50mm
142mm
Swivel
115x100mm
72x85mm
20x13mm
PU
440LBS
Other available size:
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole Distance |
Hole Dia |
Wheel Material |
Weight Capacity |
I004A125PUP | 125x50mm | 166mm |
Swivel |
115x100mm | 72x85mm | 20x13mm | PU | 506LBS |
I004A150PUP |
150x50mm |
190mm |
Swivel |
115x100mm |
72x85mm |
20x13mm |
PU |
616LBS |
I004A200PUP |
200x50mm |
240mm |
Swivel |
115x100mm |
72x85mm |
20x13mm |
PU |
660LBS |

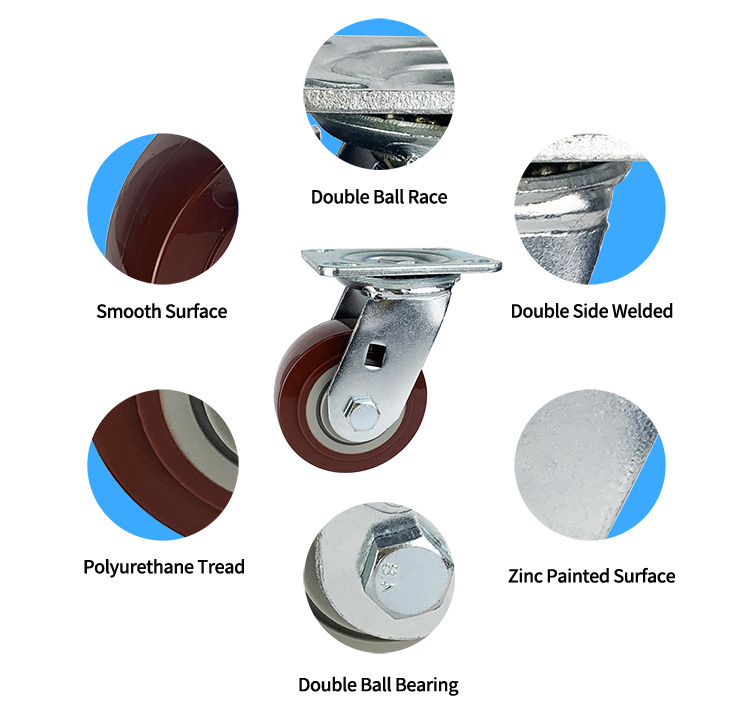

Caster Details:
Quality Control
1. Work station self-inspection-employees check the semi-finished products produced at their own locations
2. Sampling inspection during production-the quality control department conducts sampling inspection on semi-finished products in production
3. Finished product inspection-the quality control department conducts random inspections on the finished product
4. Product testing-testing and inspection of finished products
