Your best caster wheel supplier

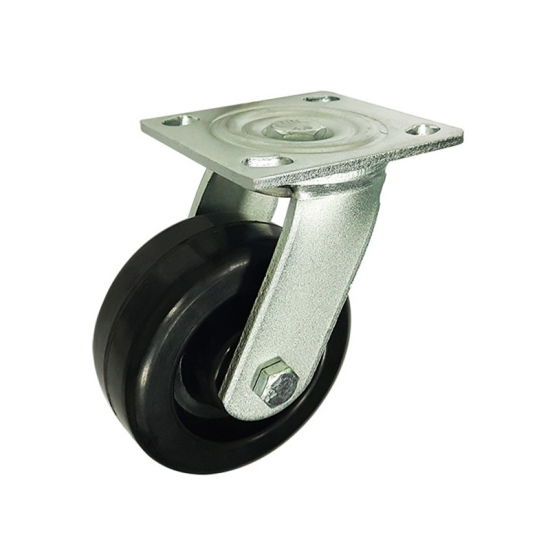

High temp swivel heavy duty phenolic casters

Style:Swivel / Rigid / Brake

Size available :100-200mm

Load Rating: 200-500mm

High Temp Phenolic Casters With Swivel Fork For Sale.


  • Item no.:

    W012XXXPF
  • Product origin:

    China (Mainland)
  • Color:

    Black
  • Goods stock:

    10000
  • Min order:

    200
  • Shipping port:

    Guangzhou
  • Lead Time:

    7-10 working days
  • Product Details

High temp swivel heavy duty phenolic casters


Housing:
Solid steel welded construction, zinc plated,
Double ballrace swivel head


Wheel:

3 Type of materials with steel roller bearing is optional,

Phenolic
1. Temperature range :0℃~180℃

Phenolic resin

2. Temperature range :0℃~220℃

Phenolic fibre

3. Temperature range :0℃~300℃


Product Description:

This Black Phenolic resin wheels are compounded with phenolic resin with macerated canvas and other compressed materials;
The wheels are molded under high pressure & temperature. They can also resist the temperature up to 260℃

Phenolic caster are recommended for smooth concrete floors and they can be used for storage loads without permanent compression set to the wheel. The wheel tread may show wear from repeated travel over rough floor surfaces.
These phenolic wheels are highly resistant to oil, grease, gasoline and mild acids.
Phenolic caster wheels will carry loads as great as the same size Iron Wheel Casters.

Kindly note that the Phenolic caster should NOT be exposed to water as they will finally swell and the wheel would fall apart over time.

If your looking for a true heavy duty caster that won't break the budget buy phenolic wheel casters from YLcaster.

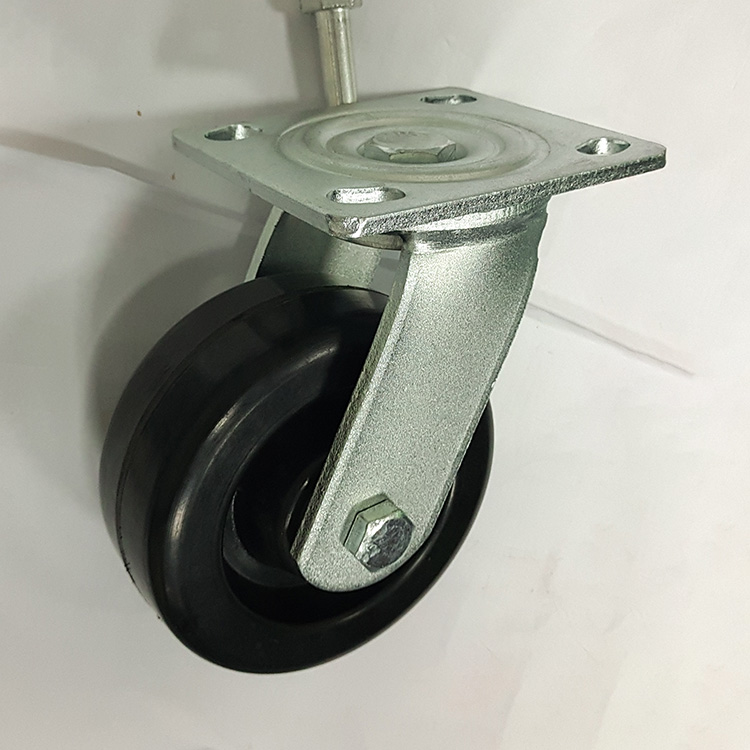

Real Shot



Specifications Of High Temp Resistant Casters:



Wheel diameter: 150 mm

Wheel width: 50 mm

Total height: 190 mm

Load capacity: 350 kg per wheel

Wheel tread: Phenolic

Mounting plate size: 115 mm x 100 mm

Fixing holes distances:85 mm x 72 mm

Bearing type: Roller bearing

Color: Black

Features: Phenolic Wheel, Black Wheel, High Temp Wheel, Heat Resistant Caster Wheel, High Temperature Trolley Wheel

With brake: No

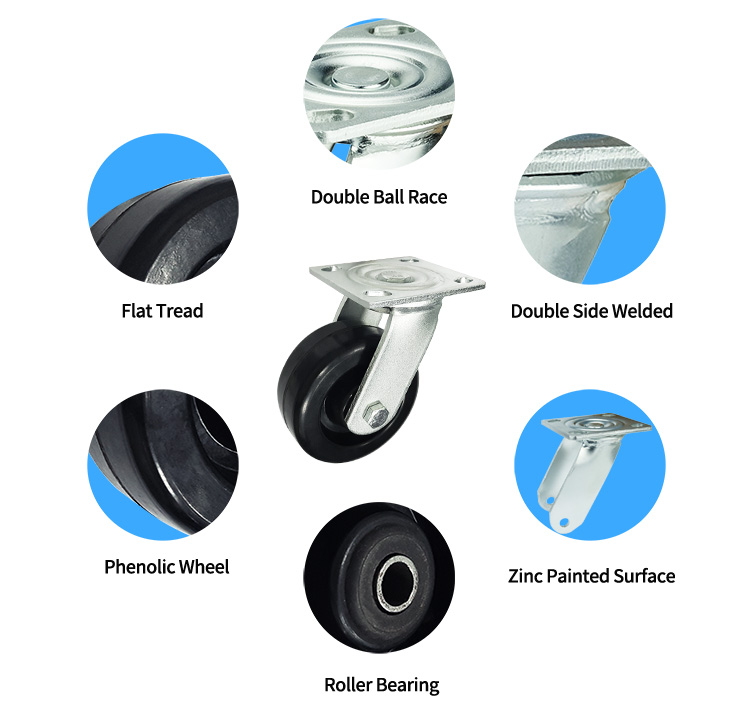

Details Of Heat Resistant Casters:

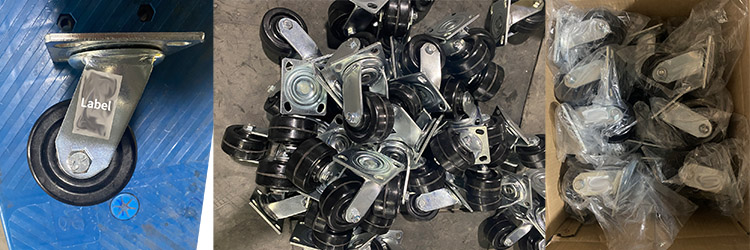

 Bulk Phenolic Casters:


Application Of Heavy Duty Oven Caster Wheels:

Phenolic Wheel Caster is one of the most commonly used casters due to the inexpensive costs and high weight capacities and durability these type of wheels offer.

Phenolic Casters can be used in many industries and applications due to the durability and strength.

Great for Tool Box, Jobsite Box.


How To Make Quality Casters:


Why Choose Us:

One of the top 10 caster brands in China

1.Manufacturing pricing

2.Broad product lines, over 2000+ combinations

3.Fastest delivery time, more than $15 Million in finished component parts

4.We deliver what we promise, quality without compromises

5.Best customer supports and services

6.Honesty and integrity
