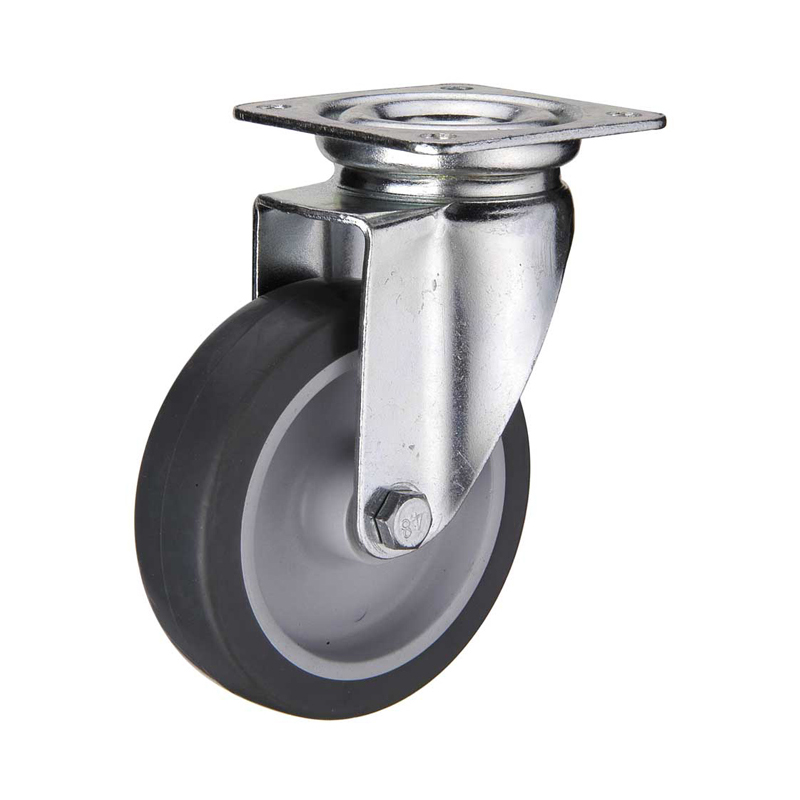

European type TPR top plate swivel caster 2.5 inch
Made of pressed steel, zinc plated.
Double ballrace swivel head.
Material: Thermoplastic rubber
Hardness: 80±5 Shore A
Bearing type: Plain bearing
Temperature: -20°C~80°C
(mm)
Wheel
Diameter
Overall
Height
Caster
Type
Top
plate
Hole
Distance
Hole
Dia
Wheel
Material
Weight
Capacity
Item No.
W36060TPR
60x22
89
Swivel
60x60x2
45x45
6.3
TPR
50 KG
W36080TPR
80x22
108
Swivel
60x60x2
45x45
6.3
TPR
60 KG
W36100TPR
100x27
134
Swivel
76x70x2
60x50
8.3
TPR
70 KG
W36125TPR
125x27
158
Swivel
76x70x2
60x50
8.3
TPR
80 KG
Feature of swivel caster wheel assembly:
- Type available: Swivel / Fixed / Double brake / Bolt hole (with brake) / Threaded stem (with brake).
- Silent thermoplastic rubber wheel, widely used for indoor products.

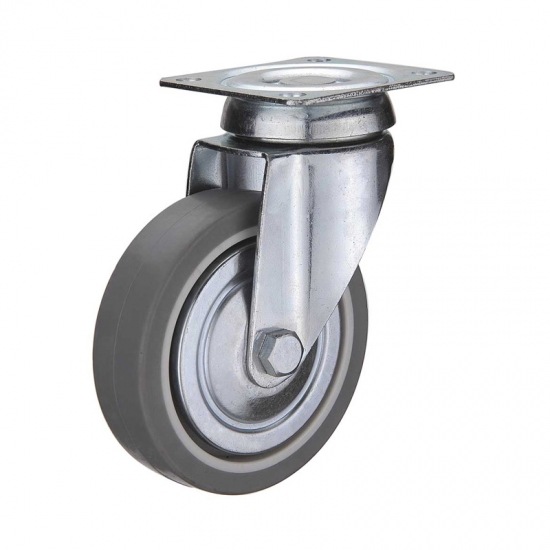

Other option of non marking swivel casters:
Without thread guard
