European style steel fixed heavy duty wheel casters
Housing:
Made of pressed steel, zinc plated
double ball race swivel head, dustproof seal
Wheel:
Materials: Cast iron polyurethane
Bearing type: Precision double ball bearing
Temperature range:-20°C-80°C
Feature:
- Type available: Swivel / Fixed / Brake.
- Cast iron core pu wheel, Nonmarking, durable, Silent.
- Other option of pu caster wheel Germany: yellow zinc plated
Product Description:
European heavy duty zinc plated bracket rotating PU caster wheels, as literally means, the stamped and formed steel bracket is painted by zinc. The wheel tread is made of red PU material wrapped with cast iron material wheel core, matched with double ball bearings. They can be made of different color, and logo are also customizable. Suitable for all kinds of industrial shelves, trolleys, machines, etc.

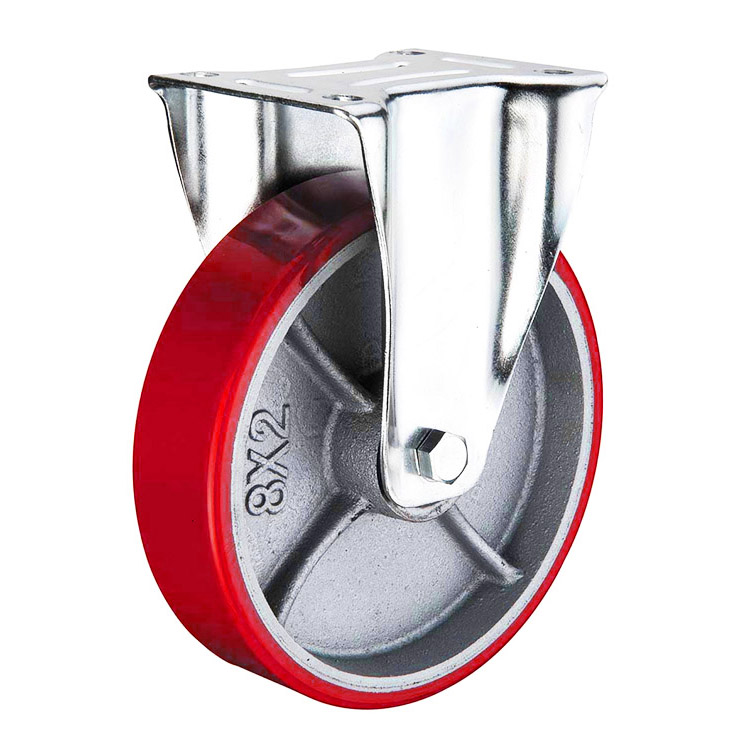

Caster Show
Specifications Of Red PU Rigid Casters:
Wheel diameter: 200 mm |
Wheel width: 50 mm |
Total height: 239 mm |
Load capacity: 450 kg per wheel |
Wheel tread:PU |
Mounting plate size: 135 mm x 110 mm |
Fixing holes distances:105 mm x 80 mm |
Bearing type: Ball bearing |
Color: Red |
Features: Red Wheel, PU Wheel, Iron PU Wheel, Trolley Caster Wheel, Heavy Duty Wheel |
With brake: No |
Top plate dimension:
Remark: All top plate size can be customized.

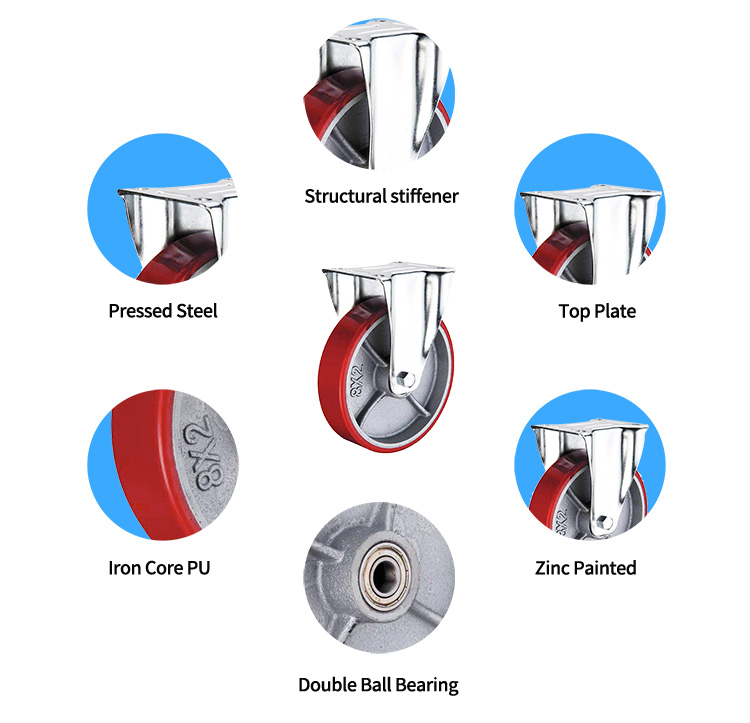

Details Of Fixed Iron PU Casters :
Application Of Rigid Iron PU Caster Wheels:
Heavy duty trolleys, machines etc
