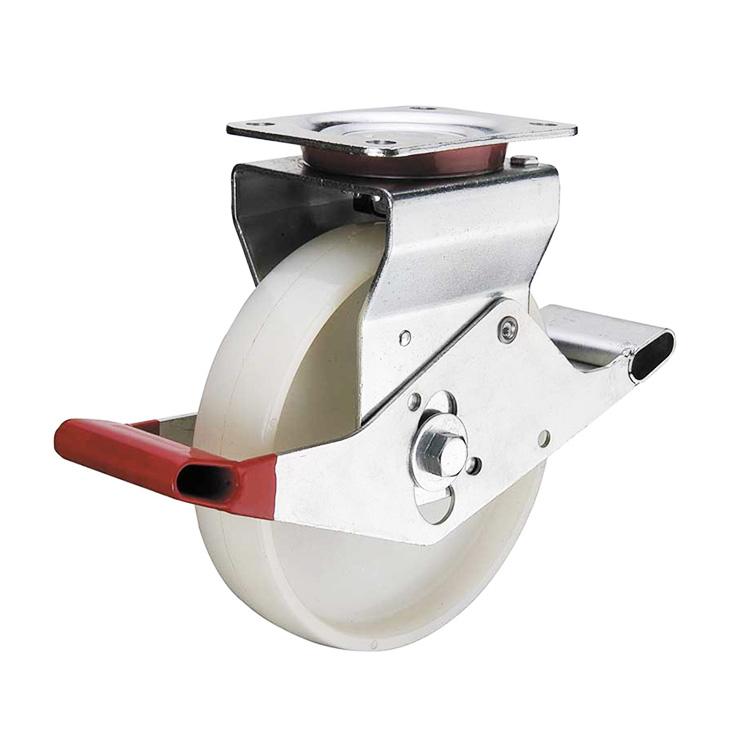

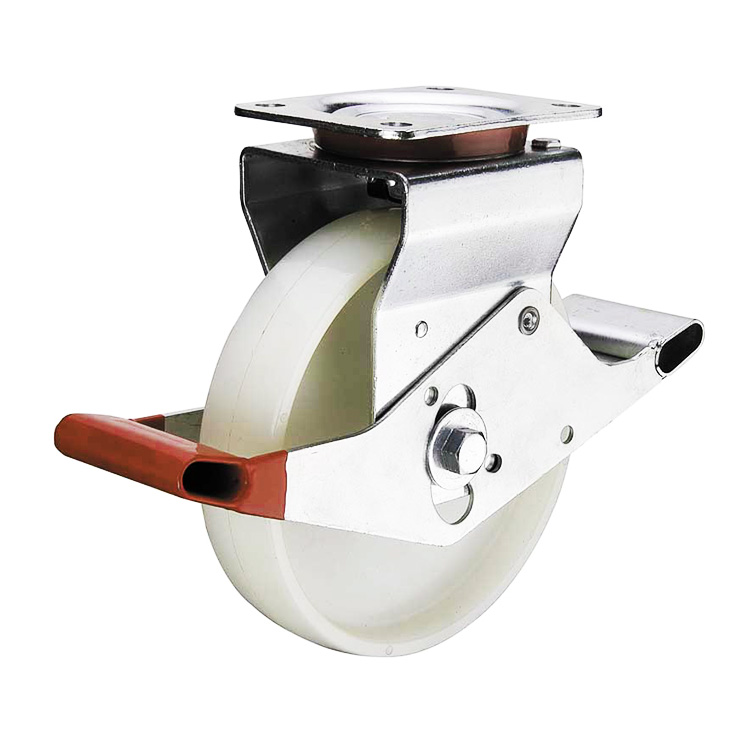

800 Kg scaffold swivel caster nylon wheels
Housing:
Double brake fitting housing,zinc plated,
Head treated double ballrace with hardened steel balls make
The caster swivel smoothly under big load
PU coated brake pedal protect shoes well
Static load capacity can reach 800 kgs.
Wheel:
Nylon wheel,plain bearing
Product Description:
These plate scaffolding caster are for heavy duty used.
All YLcaster safety scaffolding caster productions are professional, if you want to keep the wheels long-life working, you needs to check the scaffolding castor regularly. When you find any problems, please solve problems or replace the scaffold casters as fast as possible to keep safe.
Caster Show
Specifications Of Top Plate Scaffolding Casters:
Wheel diameter: 200 mm |
Wheel width: 50 mm |
Total height: 241 mm |
Load capacity: 800 kg per wheel |
Wheel tread: Nylon |
Mounting plate size: 140 mm x 110 mm |
Fixing holes distances:105 mm x 80 mm |
Bearing type: Plain bearing |
Color: White |
Features: Scaffold Wheel,ScaffoldingWheel, Industrial Wheel, ScaffoldCaster Wheel,Scaffolding Nylon Wheel |
With brake: Yes |
Details OfScaffolding Casters:
Application Of Swivel Plate Scaffolding Caster Wheels:
They can be attached to scaffolding, racks, and carts built from structural framing to allow the equipment to roll as its being moved or repositioned, which reduces the effort required to move the equipment.
They are suitable for janitorial, maintenance, painting, electrical, and construction applications.

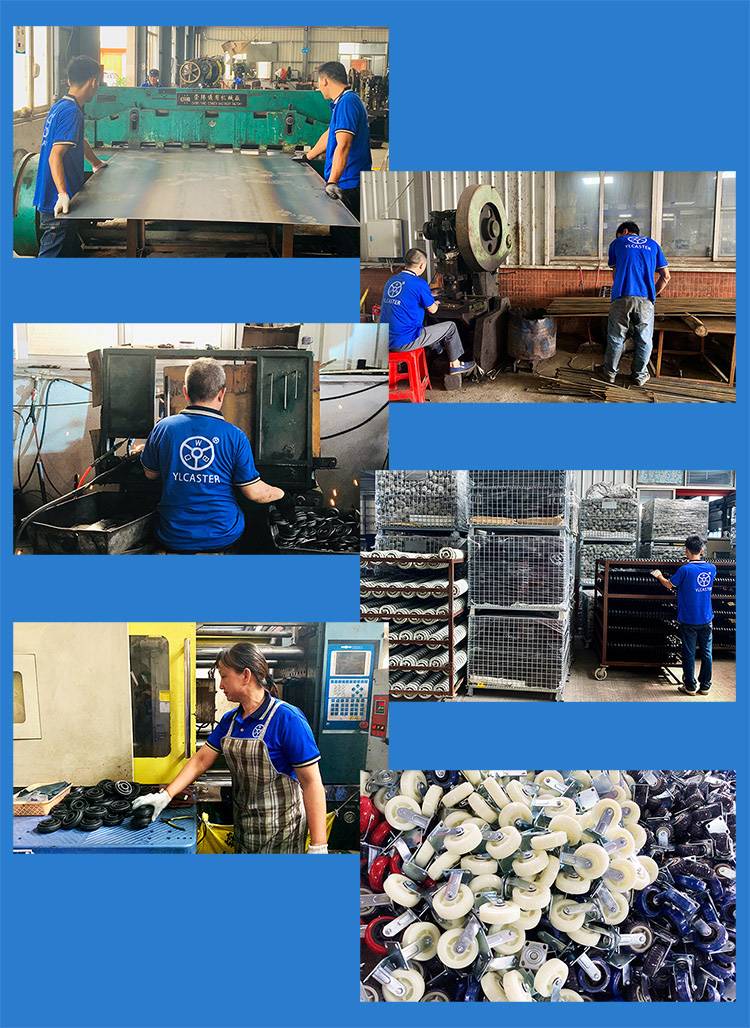

Our Workshops:
Why Choose Us:
One of the top 10 caster brands in China
1.Manufacturing pricing
2.Broad product lines, over 2000+ combinations
3.Fastest delivery time, more than $15 Million in finished component parts
4.We deliver what we promise, quality without compromises
5.Best customer supports and services
6.Honesty and integrity
Feature :
- Certification: CE, ISO, RoHS.
-
The Scaffolding involves using nylon to form a frame, to carry people and materials for any civil or mechanical work
- The brake support brackets are an integral part of the leg stamping, not welded on.
Scaffolding On Casters with gear swivel plate and wheel brake. Double lock system that locks both the swivel plate and the wheel. With this type of casters, you can move your scaffold flexibly, and fix it steadily.
