5inch 4"x4-1/2" Swivel Plate Economy Caster Fork With Lock For Heavy Duty Hand Trolley Caster Wheels OEM
Feature:
- Load capacity 230 kgs.
- High end zinc plated finish.
- Top plate size: 115x100mm.
- Hole to hole size: 85x72mm.
- Double ballrace.
- Single brake design
Product Description:
5 inch Economy Swivel Plate Caster Forks With Side Lock, for heavy duty caster wheels. It's made of good steel, double side welded construction, fine zinc painted treament can reduce the rate of rust, and extend caster life. Beside this, we also have the 4", 6" and 8" swivel lock caster forks.
Side lock design can help you stop the wheel from running anytime and easily.
They are economy caster forks that can save your budget.
Also, we can provide you heavy duty lockable castor forks with yellow zinc plated or electrophoretic black treatment. And if you need, rigid caster yoke, swivel plate castor fork are also available.

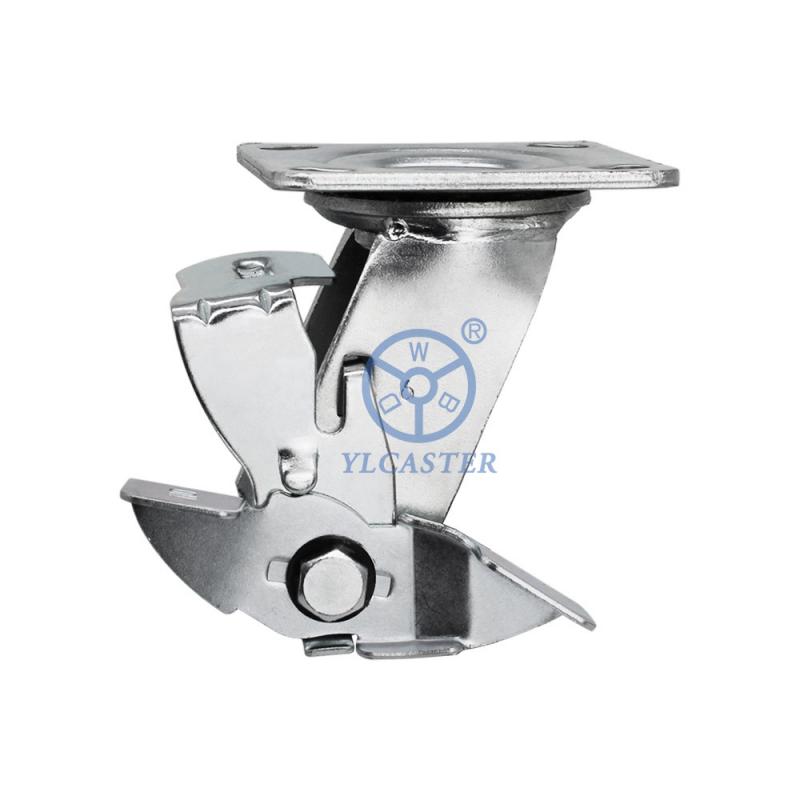

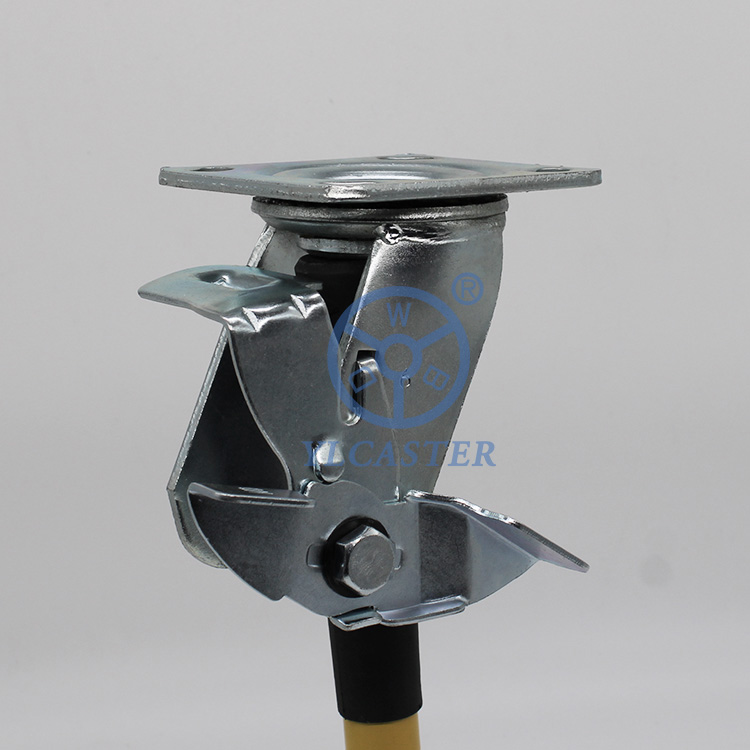

Real Shot:
Specification Of Heavy Duty Lockable Caster Fork:
Bolt-Hole Pattern
2-5/8" x 3-5/8" slotted to 3" x 3" (85x72MM)
Recommend Capacity
≥506 lbs. (≥230KG)
Caster Type
Swivel With Side Brake
Fastener
Top Plate
Fastening Bolt Size
3/8" (10MM)
Finished Casters' Overall Height
6-1/2" (160MM)
Top Plate Size
4" x 4-1/2" (115x100MM)
Recommend Tread Width
2" (50MM)
Recommend Wheel Diameter
5" (125MM )
Wheel Material
Rubber/TPR/PU/CPU/APU/PVC/Elastic Rubber/Cast Iron/PP/Nylon/Polymer etc

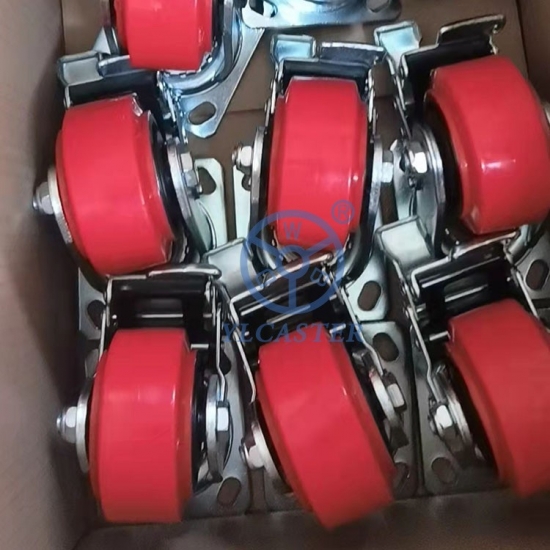

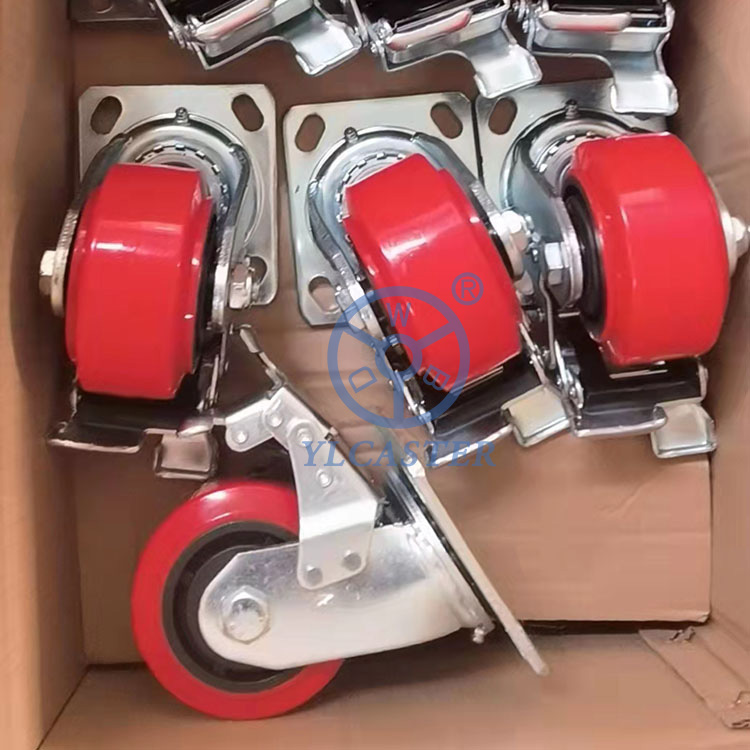

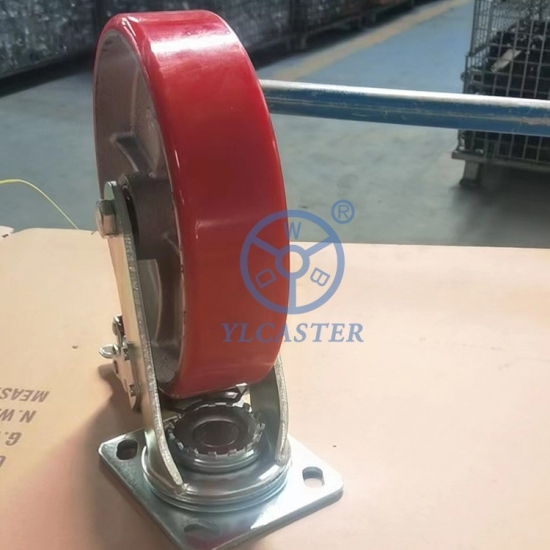

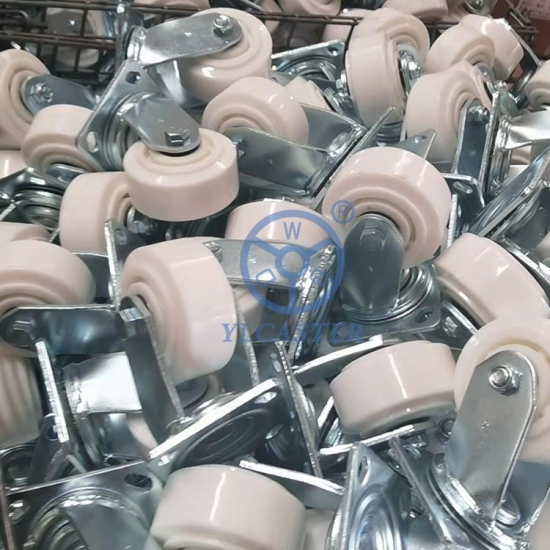

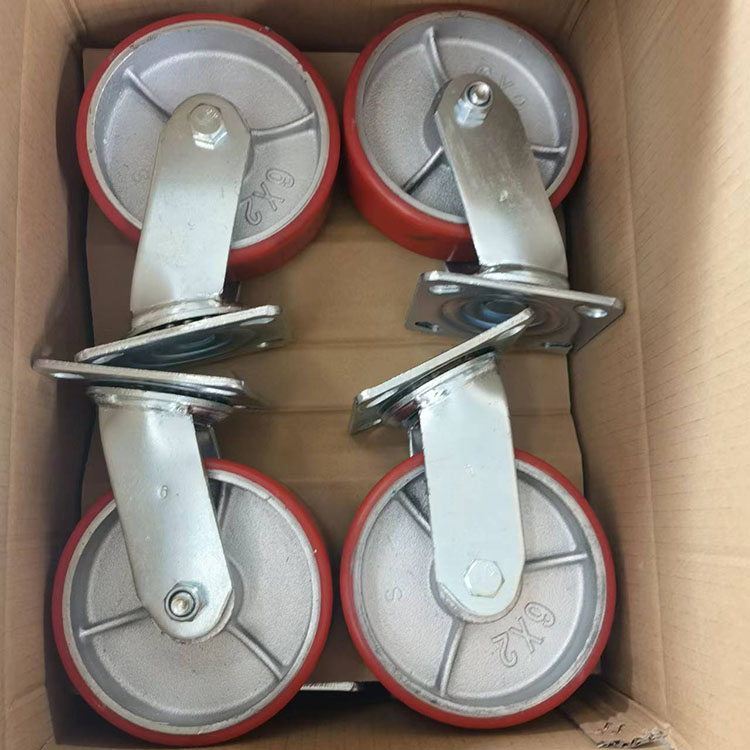

Finished Casters With These Swivel Lock Caster Forks:
Note: You can check the casters that made by this swivel plate caster forks:heavy duty swivel casters
Why Choose Us:
One of the top 10 caster brands in China
1.Manufacturing pricing
2.Broad product lines, over 2000+ combinations
3.Fastest delivery time, more than $15 Million in finished component parts
4.We deliver what we promise, quality without compromises
5.Best customer supports and services
6.Honesty and integrity
Heavy Duty Swivel Locking Caster Forks works with many kind of wheels, make it move 360 degree rotatable and stop the wheel and direction anytime.
