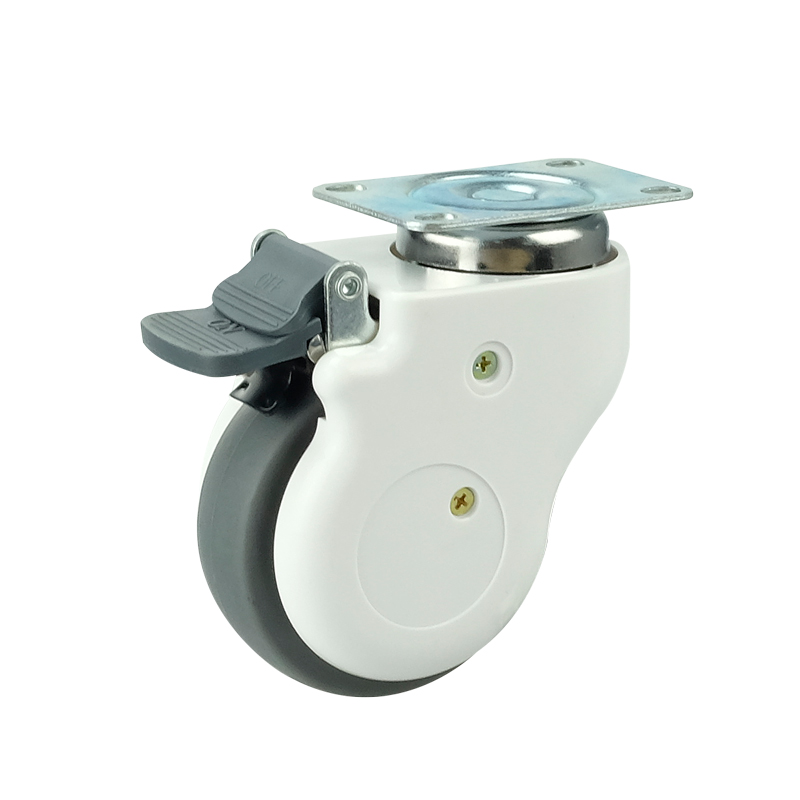

5 inch TPR single ball bearing braking medical caster
Housing: ABS cover
Wheel:
Material options: Polyurethane or Thermoplastic rubber
Mount options: Swivel, threaded stem, brake
Color: gray or transparent
(mm)
Item No. |
Wheel Diameter |
Overall Height |
Caster Type |
Top plate |
Hole Distance |
Hole Dia |
Wheel Material |
Weight Capacity |
WYE30075TPRB | 75x32 | 108 |
Brake |
95X63 | 75x45 | 8.5 | TPR | 75 KG |
WYE30100TPRB | 100x32 | 133 | Brake |
95X63 |
75x45 | 8.5 |
TPR |
90 KG |
WYE30125TPRB | 125x32 | 158 | Brake | 95X63 | 75x45 |
8.5 |
TPR | 110 KG |
Feature :
- Suit for medical beds, medical trolley carts.
- Up to CE, ISO, RoHS standard.
- Double nylon brake
- 360 degree to move into any direction.
Medical Caster With Brake is widely using in hospital beds and hospital medical equipment.
