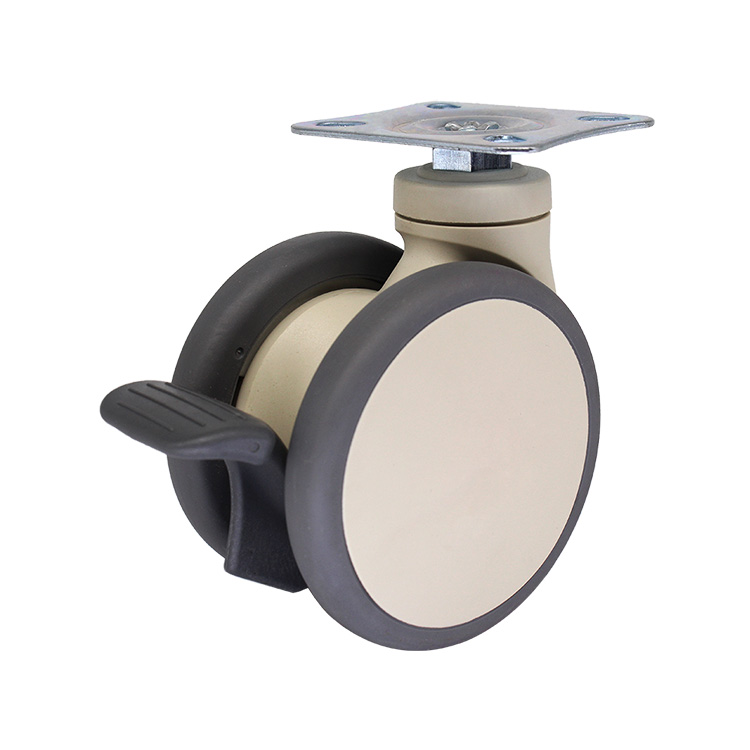

3" 4" 5" TPR Top Plate Swivel Twin Wheel Locking Casters for medical Equipments
Wheel:TPR
Mount options: Top Plate/Threaded Stem
Color: gray
Size | Wheel Diameter&Wide | Overall Height | Plate Size | Bore Spacing | Bore Diameter | Bearing | Load Capacity |
|
3" | 75x56mm | 103mm | 70x58mm | 55x43mm | 8.5mm | / |
75kg |
|
4" | 100x56mm | 130mm | 80x65mm | 55x43mm |
8.5mm |
Ball |
95kg |
|
5" |
125x65mm |
160mm | 95x68mm | 73x45mm |
8.5mm |
Ball |
110kg |
|
Feature :
- 360 degree move to any direction.
- CE, ISO, RoHS has confirmed.
- Suit for medical beds, medical trolley carts .
Twin wheels medical caster with lock is widely using in hospital beds and hospital medical equipment.
