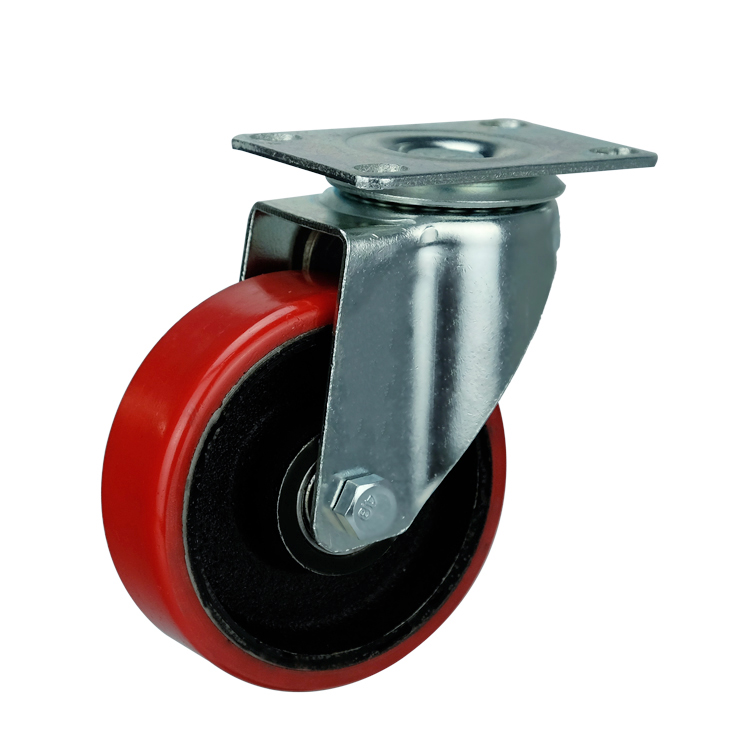

WBD Medium PU Cast Iron Core Caster
Jun 07 , 2018WBD Medium PU Cast Iron Core Caster
Characteristics of PU casters :
Bracket: double ball track and unique anti-steel wrist arc design, more resistant to weight, flexible rotation. It is more practicable. The bracket base plate adopts standard 3mm thick steel plate and the leg material with 2.3mm thick steel plate stamping.
Welding forming, surface galvanizing.
Wheel: The high technology polyurethane adhesive is injected into polyolefin wheel with mechanical lock type .
Advantage : With highly elastic ,high wear resistance, oil resistance, resistance to temperature between - 43 ℃ to 85 ℃, equipped with a precision ball bearings. The noise is very small and suitable for long or frequent mobile devices.
Specifications: swivel , fixed, screw , double brake (lock the bracket and wheel).
The wheel diameter:¢60 mm (2.5 inches) ¢75 mm (3 inches),
¢100 mm (4 inches), ¢125 mm (5 inches).
The similar medium industrial caster : PVC caster ; Rubber caster ; TPR caster.
